DG3516DB-T5-E1 Vishay
Same model may have multiple batches, images only for reference.

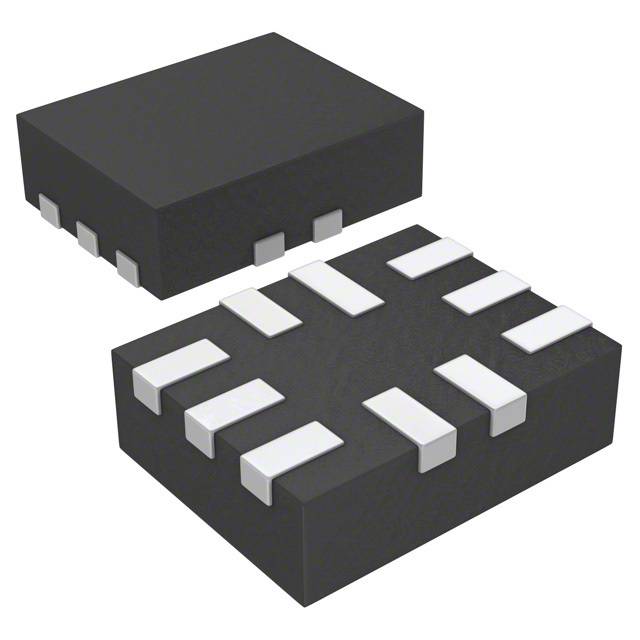

DG3516DB-T5-E1

Part No DG3516DB-T5-E1
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 10MICROFOOT
Datasheet
DG3516DB-T5-E1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 2.9 Ohm
Channel-to-Channel Matching (ΔRon) 250 mOhm (Max)
Single Supply Voltage (V+) 1.8 V to 5.5 V
Max Switch Time (Ton,Toff) 45ns, 42ns
-3db Bandwidth 300MHz
Charge Injection 1pC
Channel Capacitance(CS off, CD off) 12pF
Max Leakage Current (IS off) 2nA
Crosstalk -78dB @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-Micro Foot (4x3)
Win Source Part Number 096105-DG3516DB-T5-E1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DG3516DB-T5-E1 CAD Model

Description

Overview

The DG3516DB-T5-E1 is designed for efficiency and reliability, offering a single-supply dual SPDT (Single Pole Double Throw) analog switch ideal for modern electronic systems.

Features and Benefits

  • Single-Supply Operation: Simplifies power supply design requirements.
  • Dual SPDT Switches: Increases flexibility for multifunctional applications.
  • Robust Performance: Ensures durability and stable operation under varying conditions.

Applications

  • HVAC Systems
  • Home Automation Devices
  • Complex Signal Routing Systems

Additional Details

The DG3516DB-T5-E1's versatile nature makes it an excellent choice for applications requiring multiple signal paths and effective switching without compromising on reliability or performance.
