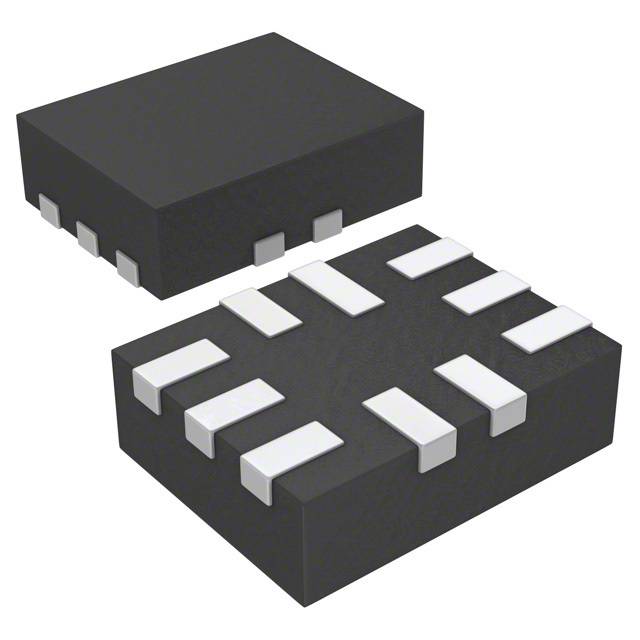

Same model may have multiple batches, images only for reference.
DG2750DN-T1-E4 Vishay
Same model may have multiple batches, images only for reference.

DG2750DN-T1-E4

Part No DG2750DN-T1-E4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH LV DUAL SPST 10MINIQFN
Datasheet
DG2750DN-T1-E4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 1 Ohm
Channel-to-Channel Matching (ΔRon) 100 mOhm
Single Supply Voltage (V+) 1.8 V to 5 V
Max Switch Time (Ton,Toff) 2.1μs, 130ns
-3db Bandwidth 49MHz
Charge Injection 4pC
Channel Capacitance(CS off, CD off) 36pF
Max Leakage Current (IS off) 50nA (Typ)
Crosstalk -60dB @ 300kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-miniQFN (1.4x1.8)
Win Source Part Number 1033172-DG2750DN-T1-E4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DG2750DN-T1-E4 CAD Model

Description

Vishay is a manufacturer of electronic components, and their product with Win Source Part Number 1033172-DG2750DN-T1-E4 is a SPDT switch circuit integrated circuit.

  • Switch Configuration: SPDT
  • Dual Supply Voltage: Yes
  • Single Supply Voltage Range: 1.8 V to 5 V
  • Case/Package: 10-miniQFN (1.4x1.8)
  • Operating Temperature Range: -40°C to 85°C
  • Category: Integrated Circuits
  • Supply and Demand Status: Balance
