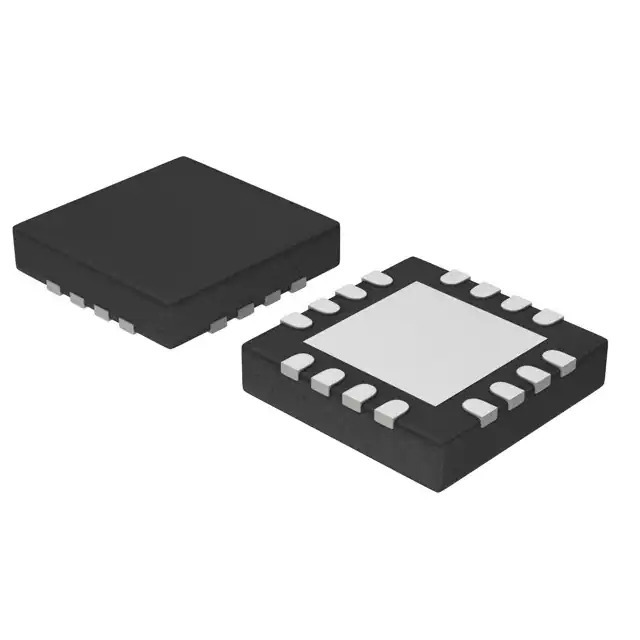

DG2523DN-T1-GE4 Vishay
Same model may have multiple batches, images only for reference.

DG2523DN-T1-GE4

Part No DG2523DN-T1-GE4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DPDT X 2 550MOHM 16QFN
Datasheet
DG2523DN-T1-GE4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Vishay Siliconix
Series -
Package Tape & Reel
Product Status Active
Switch Circuit DPDT
Number of Circuits 2
On-State Resistance (Max) 550mOhm
Channel-to-Channel Matching (ΔRon) 50mOhm
Voltage - Supply, Single (V+) 1.8V ~ 5.5V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 60µs, 1µs
-3db Bandwidth 310MHz
Charge Injection -19pC
Channel Capacitance (CS(off), CD(off)) -
Current - Leakage (IS(off)) (Max) 1nA
Crosstalk -61dB @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number DG2523
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1370843-DG2523DN-T1-GE4
Ultra Librarian 3D Model Ultra Librarian DG2523DN-T1-GE4 CAD Model

Description

The DG2523DN-T1-GE4 is an analog switch multiplexer designed for integrated circuit interface applications from Vishay Siliconix.

  • Operating Temperature: -40°C to 85°C
  • Switch Circuit: Dual DPDT
  • Maximum On-State Resistance: 550mOhm
  • Voltage Supply: 1.8V to 5.5V
  • Bandwidth: 310MHz
  • Charge Injection: -19pC
  • Package: 16-VFQFN exposed pad
  • Mounting Type: Surface mount
