The HMC442LC3B, from Analog Devices Inc., is a high-performance, GaAs MMIC (Monolithic Microwave Integrated Circuit) Double-Balanced Mixer. This device is designed to cater to the needs of RF and microwave applications, offering a broad frequency range and excellent isolation characteristics. It is an ideal choice for applications in test and measurement, defense, and communication systems where high linearity and low noise are paramount.

Key Features

• Frequency Range: The HMC442LC3B operates over a wide frequency range, with the RF and LO (Local Oscillator) frequency from 6 GHz to 14 GHz, and the IF (Intermediate Frequency) from DC to 4 GHz. This wide range makes it versatile for various high-frequency applications.
• Conversion Loss: It boasts a low conversion loss, typically 9 dB, which enhances the overall performance of the RF system by minimizing signal degradation.
• LO to RF Isolation: The device provides excellent LO to RF isolation of 45 dB, ensuring minimal leakage between the LO and RF ports, which is critical for maintaining signal integrity.
• Input IP3: The HMC442LC3B offers a high input third-order intercept point (IP3) of 25 dBm, indicating its ability to maintain linearity in the presence of strong interference signals.

Package and Integration

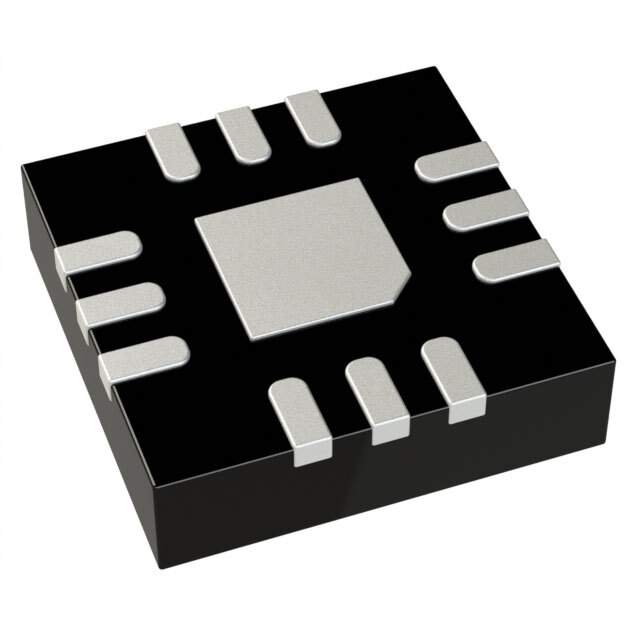

Encased in a compact 3x3 mm ceramic QFN package, the HMC442LC3B is designed for easy integration into a wide range of systems. The surface-mount package is compatible with standard automated assembly processes, reducing manufacturing complexity and costs.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• Test Equipment and Sensors
• Military and Space
• Fixed Wireless Access
• Satellite Communications Systems

The HMC442LC3B by Analog Devices Inc. represents a blend of performance, integration, and reliability, making it a top choice for designers looking to optimize their high-frequency signal chains.
