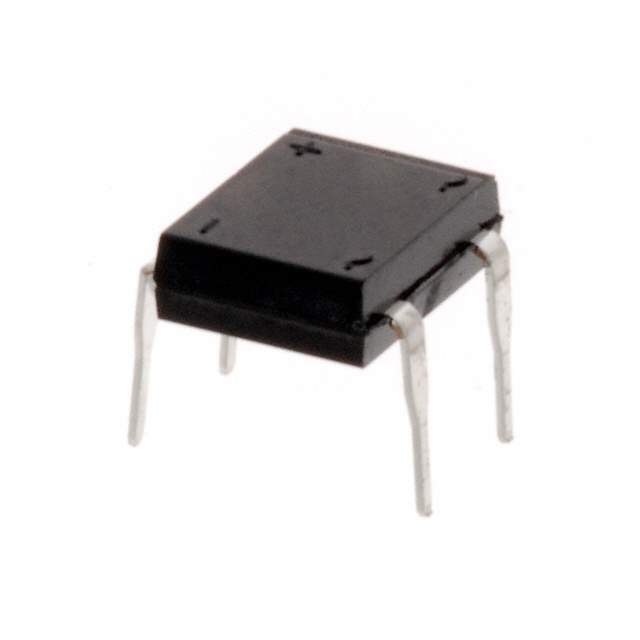

DF10M/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package DFM
Win Source Part Number 080430-DF10M/45
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF10M/45 CAD Model

Description

DF10M/45 Bridge Rectifier

The DF10M/45 is a versatile bridge rectifier, designed to handle substantial power loads with ease. Its efficiency and reliability make it ideal for heavy-duty applications.

  • Features and Benefits:
    • High rectification efficiency
    • Wide operating temperature range
    • Low power loss for energy savings
    • Durable construction for high performance
  • Applications:
    • AC-to-DC converters
    • Electric vehicle chargers
    • Welding equipment
    • General industrial electronics
  • Additional Details:
    • Supports a current rating of up to 4.5A.
    • Excellent high-temperature performance, ensuring reliability under extreme conditions.
