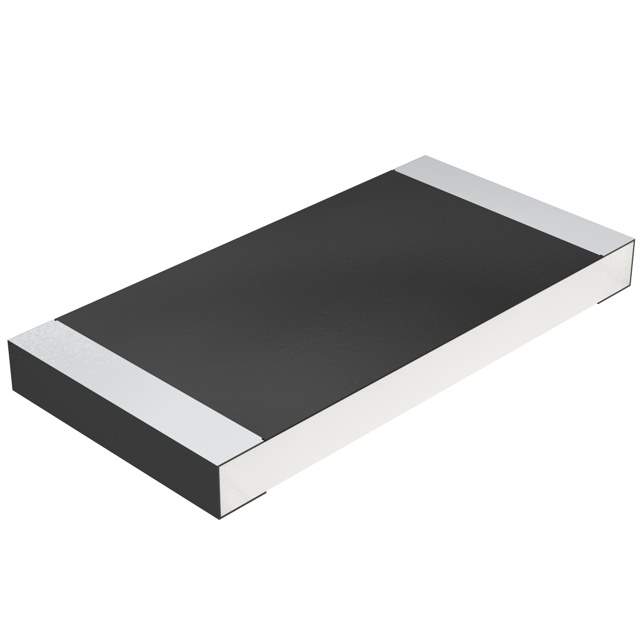

CRCW2512560RJNEG Real Image
Same model may have multiple batches, images only for reference.

CRCW2512560RJNEG

Part No CRCW2512560RJNEG
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 560 OHM 5% 1W 2512
Datasheet
CRCW2512560RJNEG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 51 Weeks
Features 560 Ohms ±5% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Manufacturer Vishay
Series CRCW
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 2512 (6432 Metric)
Case / Package 2512
Family Name CRCW2512
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-560XCT, 541-560XDKR, CRCW2512 200 560R 5% E67 E3, 541-560XTR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916021-CRCW2512560RJNEG
Ultra Librarian 3D Model Ultra Librarian CRCW2512560RJNEG CAD Model

Description

The Vishay CRCW2512560RJNEG is a chip resistor with a resistance of 560 Ohms and a tolerance of ±5%.

  • Resistance: 560 Ohms
  • Tolerance: ±5%
  • Application: Automotive
  • Standard: AEC-Q200
  • Operating Temperature: -55°C to 155°C
  • Package: 2512 (6432 Metric)
  • Packaging: Reel
  • Family Name: CRCW2512
  • Category: Resistors
  • Package Quantity: 2000
  • Estimated Production Lead Time: 51 weeks
  • HTSUS Code: 8533.21.0030
