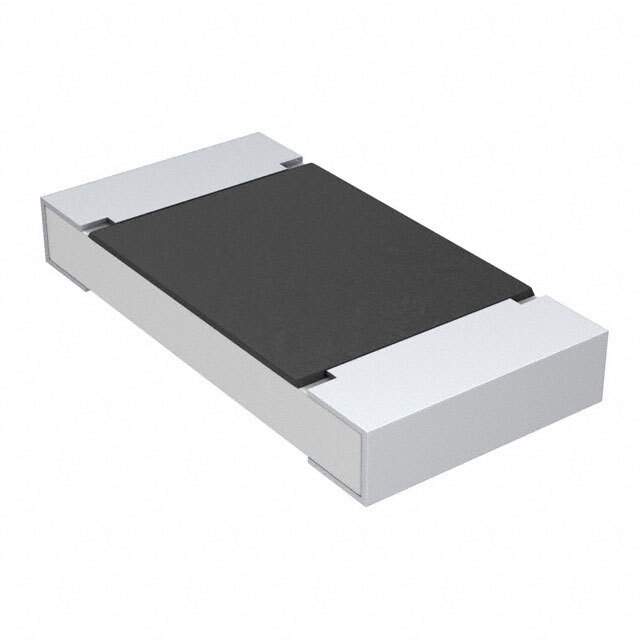

Same model may have multiple batches, images only for reference.

CRCW20104K70JNEF

Name: CRCW20104K70JNEF
Brand: Vishay
SKU: 1327107
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CRCW20104K70JNEF
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 4.7K OHM 5% 3/4W 2010 / 4.7 kOhms ±5% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200 Thick Film
Datasheet	CRCW20104K70JNEF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	4.7 kOhms
Tolerance	±5%
Power (Watts)	0.75W, 3/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	2010 (5025 Metric)
Supplier Device Package	2010
Ratings	AEC-Q200
Size / Dimension	0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
Base Product Number	CRCW2010
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	541-4.7KWCT,541-4.7KWTR,541-4.7KWDKR,CRCW2010 200 4K7 5% E02 E3
Standard Package	4,000
Win Source Part Number	1327107-CRCW20104K70JNEF
Ultra Librarian 3D Model	Ultra Librarian CRCW20104K70JNEF CAD Model

Description

The Vishay Dale 1327107-CRCW20104K70JNEF is a chip resistor with a resistance of 4.7 kOhms and a tolerance of ±5%.

Composition: thick film
Power Rating: 0.75W (3/4W)
Case: 2010 (5025 Metric)
Mounting Technology: surface mount
Temperature Coefficient: ±200ppm/°C
Rating: AEC-Q200
Terminations: 2
Supply: reel of 4,000
ROHS3: compliant
ECCN: EAR99
