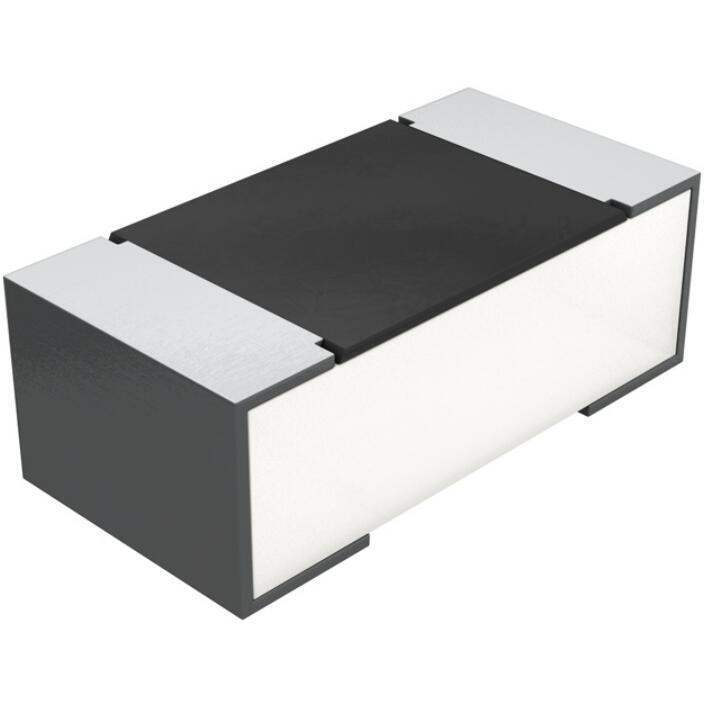

Same model may have multiple batches, images only for reference.
CRCW040247R0JNEDCVishay Dale
Same model may have multiple batches, images only for reference.

CRCW040247R0JNEDC

Part No CRCW040247R0JNEDC
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 47 OHM 5% 1/16W 0402
Datasheet
CRCW040247R0JNEDC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203679-CRCW040247R0JNEDC
Win Source Part Number Cross
Manufacturer Vishay Dale
Category Resistors Chip Resistor - Surface Mount
Series CRCW-C
Product Status Active
Resistance 47 Ohms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Ultra Librarian 3D Model Ultra Librarian CRCW040247R0JNEDC CAD Model

Description

• High volume product suitable for commercial applications
• Lead (Pb)-free solder contacts on Ni barrier layer
• Metal glaze on ceramic
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
