Same model may have multiple batches, images only for reference.

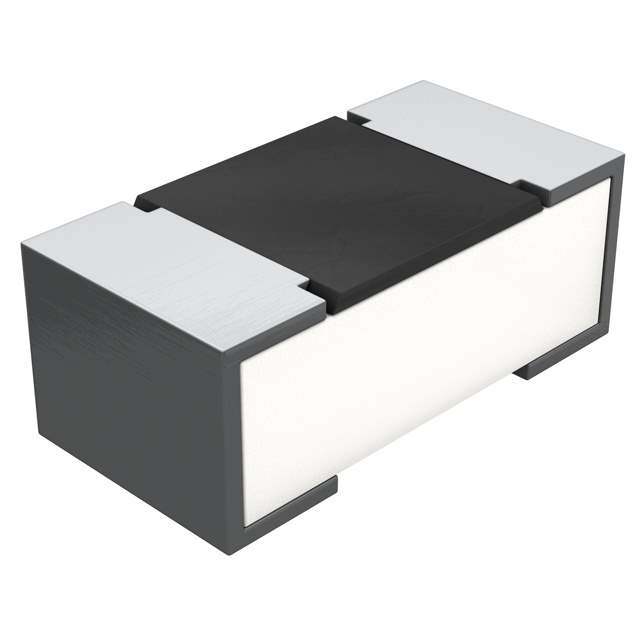

CRCW02013M90FNED Real Image
Same model may have multiple batches, images only for reference.

CRCW02013M90FNED

Part No CRCW02013M90FNED
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 3.9M OHM 1% 1/20W 0201 / 3.9 MOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
Datasheet
CRCW02013M90FNED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series CRCW
Package Tape & Reel
Resistance 3.9 MOhms
Tolerance ±1%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
Base Product Number CRCW0201
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-CRCW02013M90FNEDCT,CRCW02013M90FNED-ND,541-CRCW02013M90FNEDTR,541-CRCW02013M90FNEDDKR
Standard Package 10,000
Win Source Part Number 958266-CRCW02013M90FNED
Ultra Librarian 3D Model Ultra Librarian CRCW02013M90FNED CAD Model

Description

The Vishay Dale CRCW02013M90FNED is a surface mount chip resistor that belongs to the CRCW series. It has a resistance of 3.9 MOhms with a tolerance of ±1%. The temperature coefficient is ±200ppm/°C, and the operating temperature range is -55°C to 155°C.

  • Power Rating: 0.05W or 1/20W
  • Package/Case: 0201 (0603 Metric)
  • Packaging: Tape and reel
  • Pieces per Package: 10,000
  • Height: 0.010" (0.26mm)
  • Terminations: 2
  • Device Package: 0201
  • Cross-Reference: RC0201FR-073M9L, MCRE000251, ERJ-1GEJ395C, ERJ1GNJ395C, RC0201FR-073M83L, RC0201JR-073M9LCRCW02013M90FNED
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0030
  • Manufacturer: Vishay Dale
