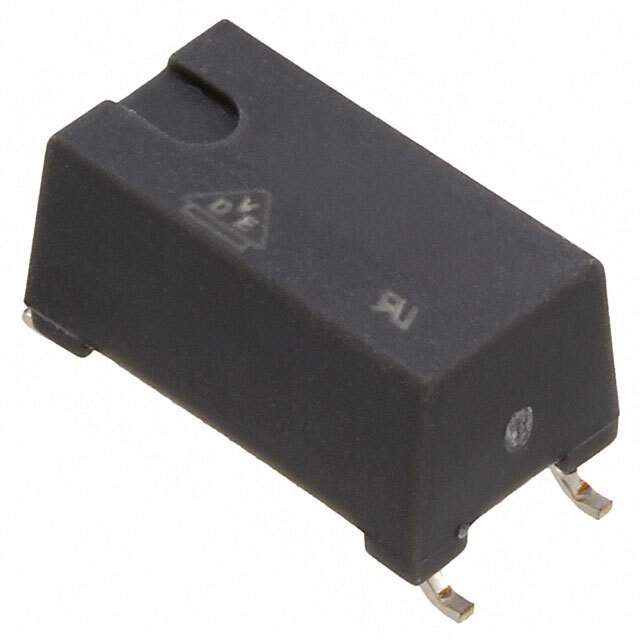

CNY64ST

Name: CNY64ST
Brand: Vishay
SKU: 1052892
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CNY64ST
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 8.2KV TRANS 4-SMD / Optoisolator Transistor Output 8200Vrms 1 Channel 4-SMD
Datasheet	CNY64ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr	Vishay Semiconductor Opto Division
Package	Tape & Reel
Number of Channels	1
Voltage - Isolation	8200Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	5µs, 3µs
Rise / Fall Time (Typ)	2.4µs, 2.7µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	32V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.32V
Current - DC Forward (If) (Max)	75 mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
Base Product Number	CNY64
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Other Names	CNY64STTR,CNY64ST-ND,CNY64STCT,CNY64STDKR
Standard Package	400
Win Source Part Number	1052892-CNY64ST
Ultra Librarian 3D Model	Ultra Librarian CNY64ST CAD Model

Description

The CNY64ST optocoupler is a photovoltaic output transistor optoisolator designed to provide high isolation voltage.

Current Transfer Ratio: 50% @ 5mA
Maximum Current Transfer Ratio: 300% @ 5mA
Voltage Isolation: 8200Vrms
Voltage Output: 32V
Package: Tape & reel
Standard Package: 400
Supply and Demand Status: Balanced
ECCN: EAR99
REACH: Unaffected
Manufacturer: Vishay Semiconductor Opto Division
MSL Level: 4 (72 hours)
Operating Temperature Range: -55°C to 85°C
Alternative parts (cross-reference): Available
