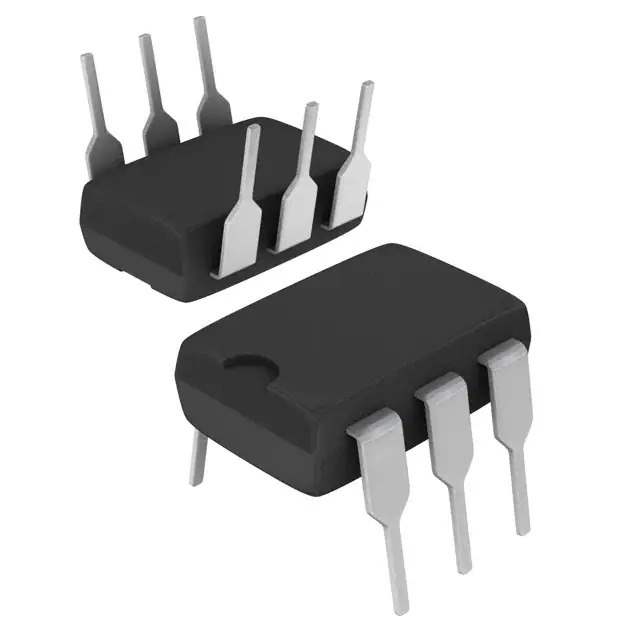

CNY17-4X001

Name: CNY17-4X001
Brand: Vishay
SKU: 579948
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CNY17-4X001
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 5KV TRANS W/BASE 6DIP / Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
Datasheet	CNY17-4X001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Vishay
Package	Tube
Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	160% @ 10mA
Current Transfer Ratio (Max)	320% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor with Base
Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.39V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Temperature Range - Operating	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Base Product Number	CNY17
Standard Package	50 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	579948-CNY17-4X001
Ultra Librarian 3D Model	Ultra Librarian CNY17-4X001 CAD Model

Alternative Products

Description

The CNY17-4X001 is a transistor output optoisolator, designed for applications requiring electrical isolation and high-speed, high-current switching.

Input Type: DC
Output Type: Transistor with Base
Forward Current (Max): 60mA
Forward Voltage: 1.39V
Rise/Fall Time: 2µs (typ)
Output Current per Channel: 50mA
Voltage Isolation: 5000Vrms
Output Voltage (Max): 70V
Temperature Range: -55°C to 110°C
Mounting: Through Hole
Package: 6-DIP
Manufacturer: Vishay
Status: Active
