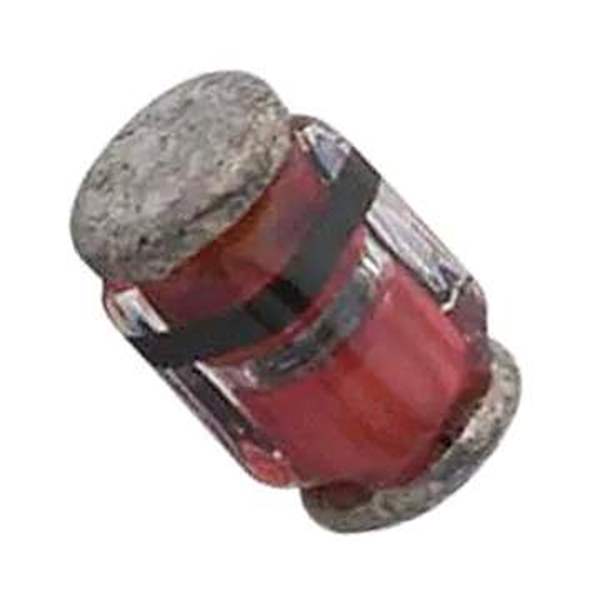

BZM55B20-TR Real Image
Same model may have multiple batches, images only for reference.

BZM55B20-TR

Part No BZM55B20-TR
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 20V 500MW MICROMELF
Datasheet
BZM55B20-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Vishay
Series Automotive, AEC-Q101, BZM55
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 20 V
Power - Max 500 mW
Impedance (Max) (Zzt) 220 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 15 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package MicroMELF
Base Product Number BZM55B20
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 574455-BZM55B20-TR
Ultra Librarian 3D Model Ultra Librarian BZM55B20-TR CAD Model

Description

The BZM55B20-TR is a single zener diode designed for use in discrete semiconductor products.

  • Series: BZM55
  • Application: Automotive, AEC-Q101
  • Power Rating: 500 mW
  • Forward Voltage: 1.5V @ 200 mA
  • Reverse Leakage Current: 100nA @ 15V
  • Nominal Zener Voltage: 20V
  • Maximum Impedance: 220 Ohms
  • Mounting Type: Surface Mount
  • Operating Temperature: -65°C to 175°C
  • Manufacturer: Vishay
