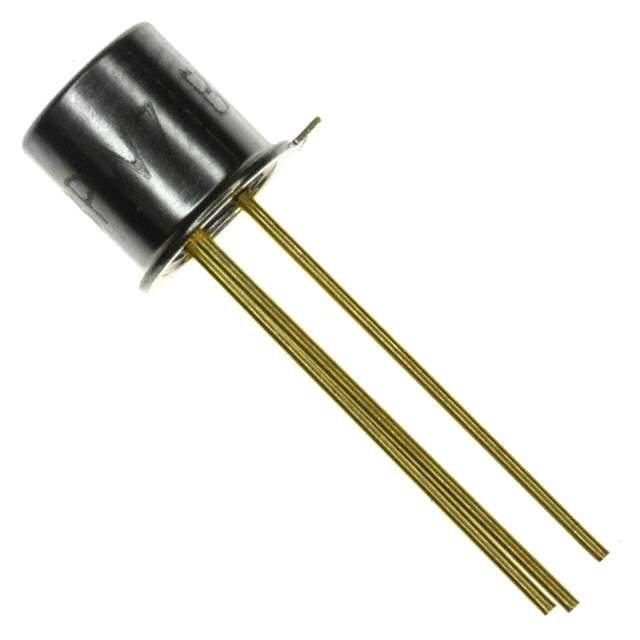

BPW76B Real Image
Same model may have multiple batches, images only for reference.

BPW76B

Part No BPW76B
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 450 TO 1080 NM / Phototransistors 850nm Top View TO-206AA, TO-18-3 Metal Can
Datasheet
BPW76B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Vishay Semiconductor Opto Division
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 70 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 850nm
Viewing Angle 80°
Power - Max 250 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
Base Product Number BPW76
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Other Names 751-1019
Standard Package 1,000
Win Source Part Number 981805-BPW76B
Ultra Librarian 3D Model Ultra Librarian BPW76B CAD Model

Description

The Vishay BPW76B is an optical sensor phototransistor that has a viewing angle of 80° and a wavelength of 850nm.

  • Viewing Angle: 80°
  • Wavelength: 850nm
  • Maximum Power: 250 mW
  • Voltage Breakdown: 70 V
  • Maximum Collector Current: 50 mA
  • Dark Current: 100 nA
  • Package Type: Bulk
  • Orientation: Top View
  • Package Size: TO-206AA, TO-18-3 Metal Can
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8541.49.7080
  • Base Product Number: BPW76
