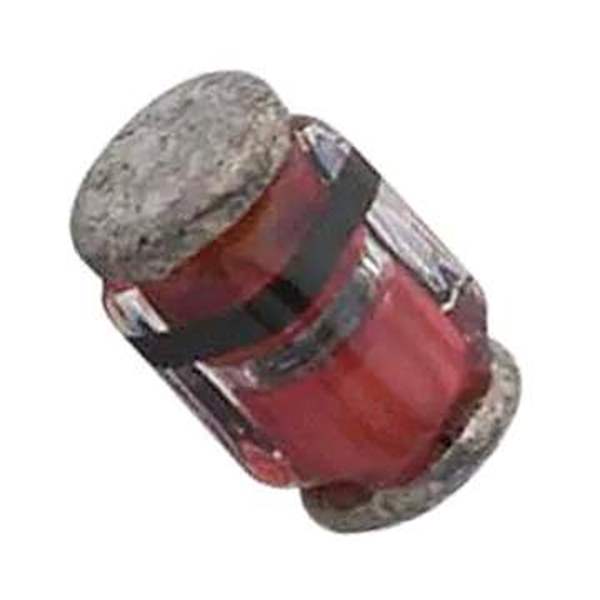

BAV302-TR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 150 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package MicroMELF
Operating Temperature - Junction 175°C (Max)
Base Product Number BAV302
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 569012-BAV302-TR
Ultra Librarian 3D Model Ultra Librarian BAV302-TR CAD Model

Description

The 569012-BAV302-TR is a single diode from Vishay's BAV302 series.

  • Application: Rectification
  • AEC-Q101 Compliant: Yes (automotive applications)
  • Mounting: Surface mountable
  • Package: 2-SMD, no lead
  • Maximum Reverse Voltage: 150 V
  • Average Rectified Current: 250 mA
  • Forward Voltage Drop: 1 V @ 100 mA
  • Reverse Recovery Time: 50 ns
  • Capacitance: 1.5 pF @ 0V and 1 MHz
  • Maximum Junction Temperature: 175°C
  • Product Status: Active
