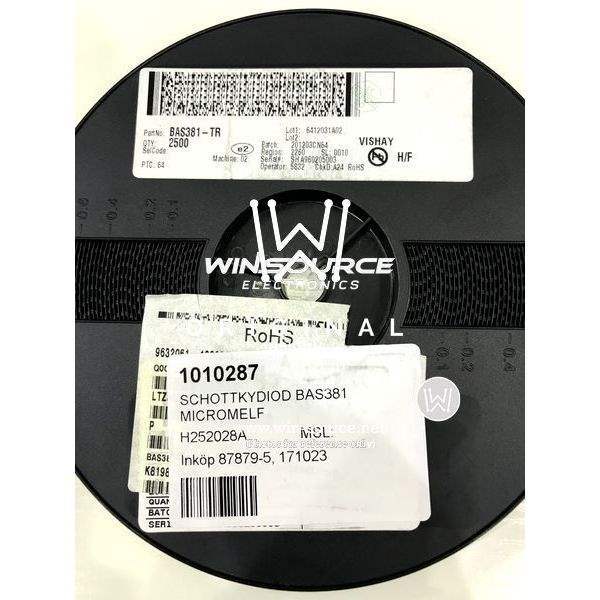

BAS381-TR Vishay BAS381-TR Real Image BAS381-TR label picture 2 BAS381-TR real image
Same model may have multiple batches, images only for reference.
BAS381-TR Vishay BAS381-TR Real Image BAS381-TR label picture 2 BAS381-TR real image
BAS381-TR Vishay BAS381-TR Real Image BAS381-TR label picture 2 BAS381-TR real image
Same model may have multiple batches, images only for reference.

BAS381-TR

Part No BAS381-TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 30MA MICROMLF / Diode Small Signal Schottky 40V 0.03A Automotive 2-Pin MicroMELF T/R
Datasheet
BAS381-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 30mA
Voltage - Forward (Vf) (Max) @ If 1V @ 15mA
Current - Reverse Leakage @ Vr 200nA @ 40V
Capacitance @ Vr, F 1.6pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package MicroMELF
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1022071-BAS381-TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name BAS381
Introduction Date May 19, 1999
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BAS381-TR CAD Model

Description

The Vishay 1022071-BAS381-TR is a Schottky diode that is a part of the BAS381 family.

  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 30mA
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 15mA
  • Current - Reverse Leakage @ Vr: 200nA @ 40V
  • Capacitance: 1.6pF @ 1V, 1MHz
  • Operating Temperature - Junction: 125°C (Max)
  • Packaging: MicroMELF
  • Mounting: SMD (SMT) technology
  • Supply and Demand Status: sufficient
