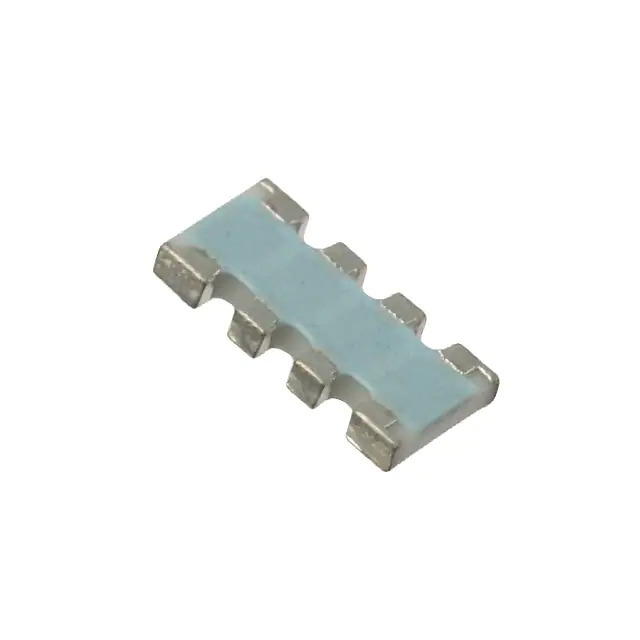

ACASA1001U1001P1AT Vishay
Same model may have multiple batches, images only for reference.

ACASA1001U1001P1AT

Part No ACASA1001U1001P1AT
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description ACAS 0612 1K0 U 1K0 AT P1
Datasheet
ACASA1001U1001P1AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Vishay Beyschlag/Draloric/BC Components
Series ACA - Precision
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±0.1%
Number of Resistors 4
Resistor Matching Ratio ±0.05%
Resistor-Ratio-Drift ±5ppm/°C
Number of Pins 8
Power Per Element 125mW
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200, Voltage Divider (TCR Matched)
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0010
Win Source Part Number 1374238-ACASA1001U1001P1AT
Ultra Librarian 3D Model Ultra Librarian ACASA1001U1001P1AT CAD Model

Description

The ACA - Precision series resistor networks from Vishay Beyschlag/Draloric/BC Components are surface mount resistors with a resistance of 1k ohms.

  • Resistance: 1k ohms
  • Configuration: 4 Resistors
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±10ppm/°C
  • Application: Automotive, Voltage Divider (Matched Temp Coefficients)
  • Package: Tape and Reel
  • Package Size: 1206 (3216 Metric), Long Side Terminals
  • Height: 0.022" (0.55mm)
  • Power per Element: 125mW
  • Isolation: Isolated
  • Resistor Matching Ratio: ±0.05%
  • Resistor-Ratio-Drift: ±5ppm/°C
