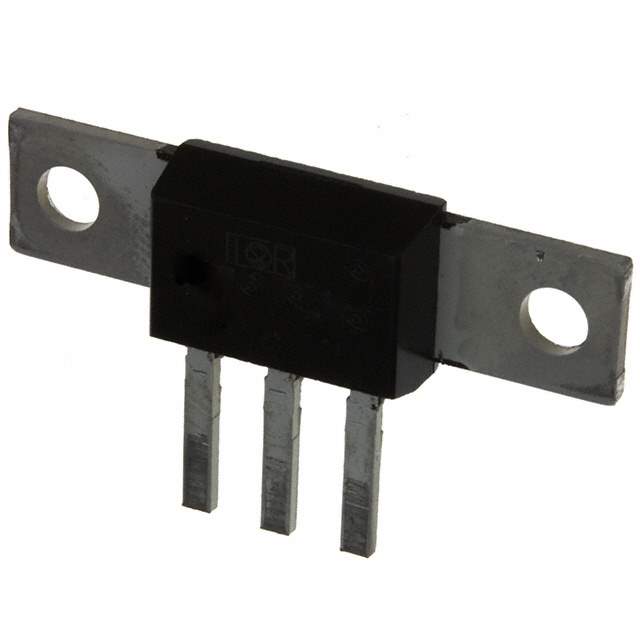

85CNQ015A Real Image
Same model may have multiple batches, images only for reference.

85CNQ015A

Part No 85CNQ015A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 15V D618
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 450mV at 80A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 20mA at 15V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Style Chassis Mount
Manufacturer Package D-61-8
Supplier Device Package D-61-8
Family Part Number 85CNQ015
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1134037-85CNQ015A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 85CNQ015A CAD Model

Description

The Vishay Semiconductor Diodes Division 1134037-85CNQ015A is a Schottky diode with a voltage rating of 15V and an average rectified current of 40A per diode.

  • Voltage Rating: 15V
  • Average Rectified Current: 40A per diode
  • Recovery Speed: 200mA (Io)
  • Case: D-61-8
  • Status: Obsolete
  • Supply and Demand: Limited
