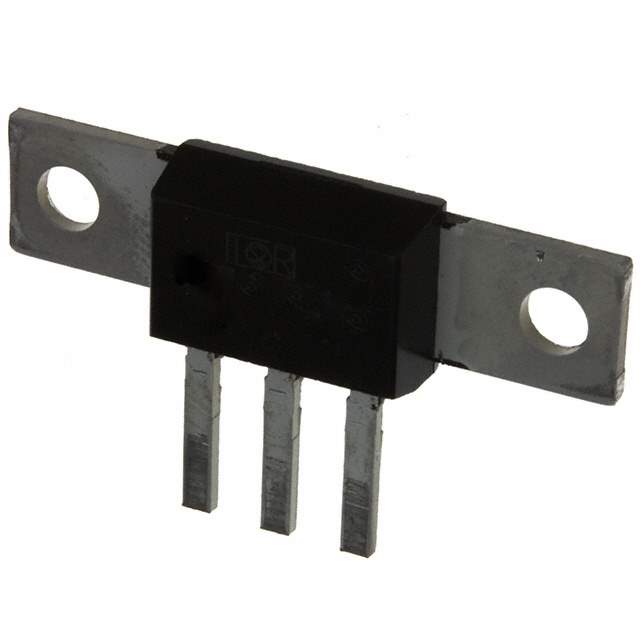

83CNQ100A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 1V at 80A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.5mA at 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Chassis Mount
Manufacturer Package D-61-8
Supplier Device Package D-61-8
Family Part Number 83CNQ100
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1133953-83CNQ100A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 83CNQ100A CAD Model

Description

The 83CNQ100A from Vishay Semiconductor Diodes Division is a fast recovery Schottky diode.

  • Supply and Demand Status: In balance
  • Current Rating: 40A
  • Voltage Rating: 100V
  • Applications: High-speed switching applications
  • Recovery Time: 200mA (Io)
  • Package: Bulk
  • Mount Style: Chassis mount
  • Diode Configuration: 1 pair common cathode
