Same model may have multiple batches, images only for reference.

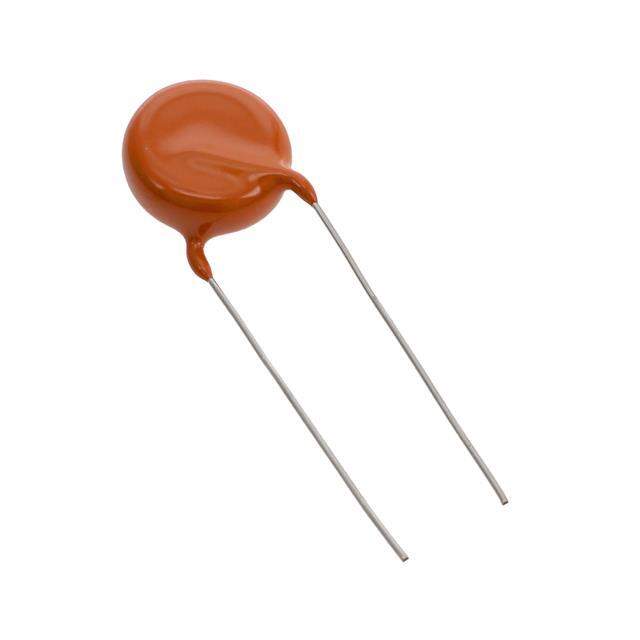

615R100GAD10 Real Image
Same model may have multiple batches, images only for reference.

615R100GAD10

Part No 615R100GAD10
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 1000PF 10KV Y5R RADIAL / 1000 pF ±20% 10000V (10kV) Ceramic Capacitor Y5R Radial, Disc
Datasheet
615R100GAD10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Cera-Mite
Series Cera-Mite 615R
Package Bulk
Capacitance 1000 pF
Tolerance ±20%
Voltage - Rated 10000V (10kV)
Temperature Coefficient Y5R
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Applications SMPS Filtering
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.752" Dia (19.10mm)
Height - Seated (Max) 1.004" (25.50mm)
Lead Spacing 0.500" (12.70mm)
Lead Style Straight
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1336923-615R100GAD10
Ultra Librarian 3D Model Ultra Librarian 615R100GAD10 CAD Model

Description

The 1336923-615R100GAD10 is a ceramic capacitor from Vishay Cera-Mite.

  • Capacitance: 1000 pF
  • Voltage Rating: 10000V (10kV)
  • Temperature Coefficient: Y5R
  • Tolerance: ±20%
  • Package/Case: Radial, Disc
  • Mounting Type: Through Hole
  • Size/Dimension: 0.752" Dia (19.10mm)
  • Height Seated (Max): 1.004" (25.50mm)
  • Application: SMPS Filtering
