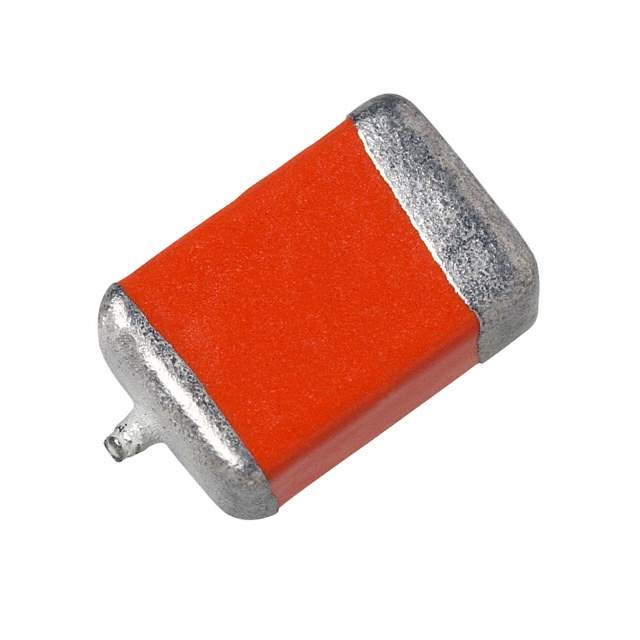

594D685X0050D2T Real Image
Same model may have multiple batches, images only for reference.

594D685X0050D2T

Part No 594D685X0050D2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 50V 20% 2917
Datasheet
594D685X0050D2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 594D
Packaging Reel package
Capacitance 6.8μF
Tolerance ±20%
Voltage Rating DC 50V
Type Conformal Coated
ESR (Equivalent Series Resistance) 450 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.295" L x 0.169" W (7.50mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 764125-594D685X0050D2T
Family Name 594D
Introduction Date April 12, 2006
ECCN EAR99
Country of Origin Israel
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 594D685X0050D2T CAD Model

Description

The Vishay Sprague TANTAMOUNT 594D is a conformal coated capacitor that has a capacitance of 6.8μF and a tolerance of ±20%.

  • Manufacturer: Vishay Sprague
  • Capacitance: 6.8μF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 450 mOhm
  • Type: General Purpose
  • Mounting Type: SMD
  • Package: 2917 (7343 Metric)
  • Category: Capacitors
  • Voltage Rating DC: 50V
  • Height-Seated (Maximum): 0.122" (3.10mm)
  • Alternative Parts (Cross-Reference): 594D685X0050D8T, 594D685X0050D8W, and 594D685X0050D2W
  • Introduction Date: April 12, 2006
  • ECCN: EAR99
  • Country of Origin: Israel
  • Estimated EOL Date: 2024
  • Supply and Demand Status: Limited
