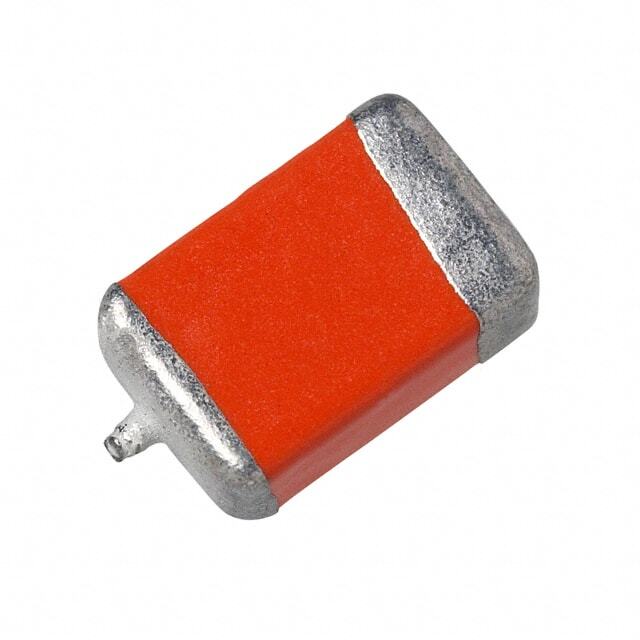

Same model may have multiple batches, images only for reference.
594D107X0020D2T
Same model may have multiple batches, images only for reference.

594D107X0020D2T

Part No 594D107X0020D2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 100UF 20% 20V 2917
Datasheet
594D107X0020D2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay
Series TANTAMOUNT®, 594D
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 85mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.295" L x 0.169" W (7.50mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Standard Package 500 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 846429-594D107X0020D2T
Ultra Librarian 3D Model Ultra Librarian 594D107X0020D2T CAD Model

Description

The 846429-594D107X0020D2T is a tantalum capacitor from the TANTAMOUNT® 594D series. It is a conformal coated capacitor with a capacitance value of 100 µF and a voltage rating of 20 V.

  • Application: General Purpose
  • Packaging: Tape and Reel
  • Size: 0.295" length and 0.169" width
  • Seated Height: 0.122"
  • Tolerance: ±20%
  • ESR: 85mOhm
  • Operating Temperature: -55°C to 125°C
