Same model may have multiple batches, images only for reference.

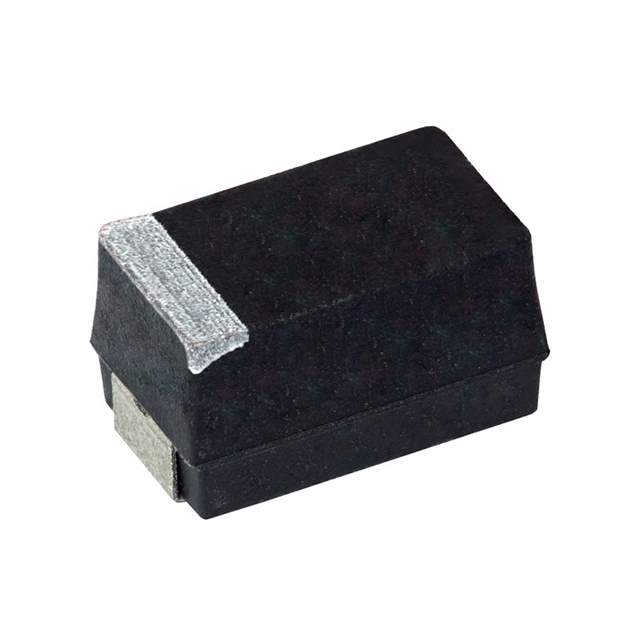

593D226X0020D2T Real Image
Same model may have multiple batches, images only for reference.

593D226X0020D2T

Part No 593D226X0020D2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20V 20% 2917
Datasheet
593D226X0020D2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 20V
Type Molded
ESR 225 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 056989-593D226X0020D2T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 593D226X0020D2T CAD Model

Description

Overview of 593D226X0020D2T

The 593D226X0020D2T is a high-capacitance tantalum capacitor with excellent performance characteristics. With a capacitance of 220μF and a voltage rating of 20V, it is engineered for use in robust electronic circuits.

  • Applications:
    • Audio amplifier circuits
    • Energy storage systems
    • Power factor correction
    • LED drivers
  • Features and Benefits:
    • Exceptional volumetric efficiency
    • Strong thermal stability
    • Compact size reduces board space requirements
    • Low DC leakage current
  • Additional Details:
    • Case size: D
    • Tolerance: ±20%
    • Mounting type: Surface mount
    • RoHS compliant
