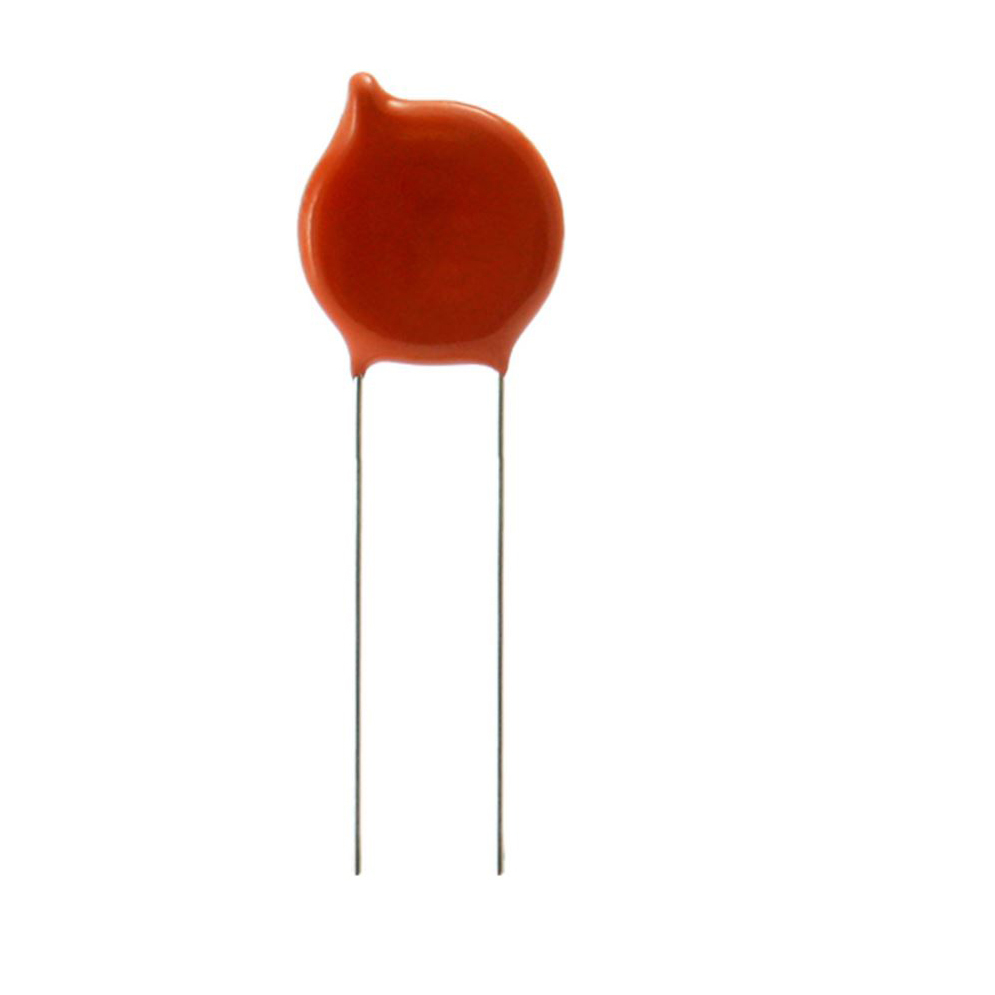

564R3DF0D12 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

564R3DF0D12

Part No 564R3DF0D12
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 1200PF 3KV RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 1200 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Range - Operating -25°C ~ 105°C
Applications General Purpose
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.559" Dia (14.20mm)
Height - Seated (Max) 0.748" (19.00mm)
Lead Spacing 0.374" (9.50mm)
Lead Style Straight
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1516668-564R3DF0D12
Ultra Librarian 3D Model Ultra Librarian 564R3DF0D12 CAD Model
