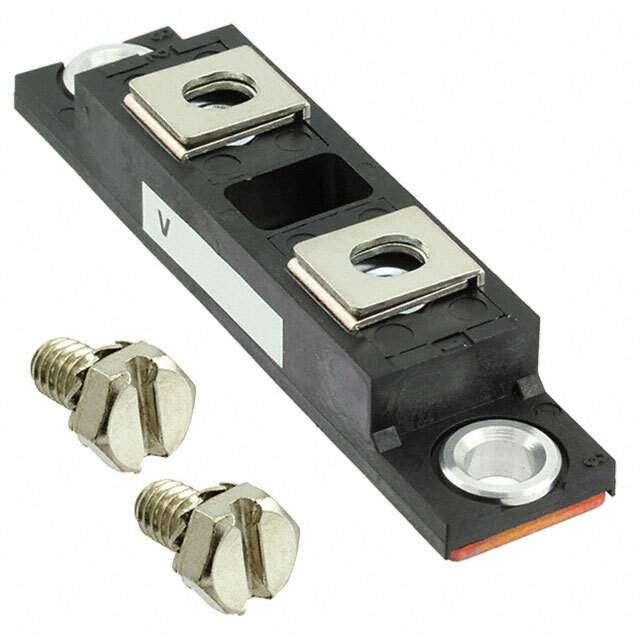

403CNQ100 Real Image
Same model may have multiple batches, images only for reference.

403CNQ100

Part No 403CNQ100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE MODULE 100V 400A TO244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 400A
Voltage - Forward (Vf) (Maximum) at If 970mV at 400A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 6mA at 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Chassis Mount
Manufacturer Package TO-244AB
Supplier Device Package TO-244AB
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1128541-403CNQ100
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 403CNQ100 CAD Model

Description

The 403CNQ100 is a fast recovery Schottky diode from Vishay Semiconductor Diodes Division.

  • Package: TO-244AB
  • Mounting Type: Chassis Mount
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current: 400A per diode
  • Supply and Demand Status: Limited
