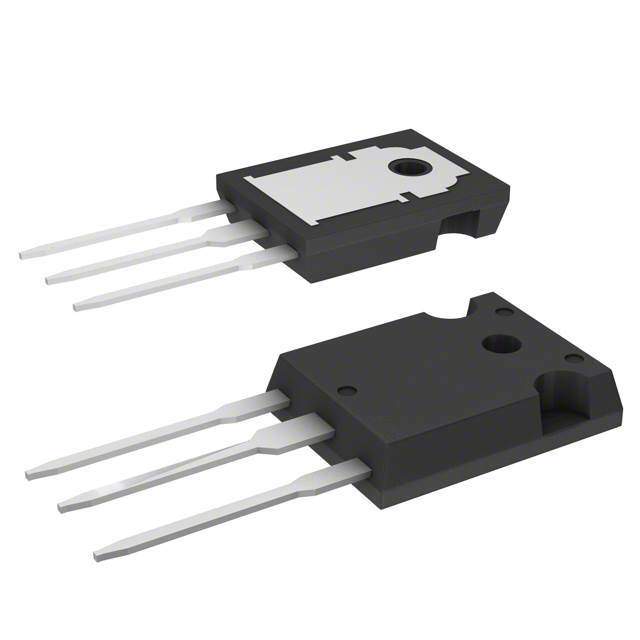

30CPQ100 Real Image
Same model may have multiple batches, images only for reference.

30CPQ100

Part No 30CPQ100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER 30 Amp | DIODE ARRAY SCHOTTKY 100V TO247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) at If 860mV at 15A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 550μA at 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247AC
Family Part Number 30CPQ100
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1127980-30CPQ100
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 30CPQ100 CAD Model

Description

The Vishay Semiconductor Diodes Division 30CPQ100 is a fast recovery Schottky diode pair with a common cathode configuration and a maximum voltage of 100V.

  • Configuration: Common Cathode
  • Voltage: 100V (Max)
  • Current - Average Rectified: 15A
  • Forward Voltage: 860mV @ 15A
  • Package: TO-247AC
  • Operating Temperature: -55°C to 175°C
  • Status: Obsolete
  • Supply and Demand: Limited
  • Popularity: Medium
