Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 2A
Current - Reverse Leakage @ Vr 5μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Circular, WOG
Manufacturer Package WOG
Win Source Part Number 763049-2W04G-E4/51
Popularity Medium
Supply and Demand Status Limited
Family Name 2W04G
Introduction Date June 18, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian 2W04G-E4/51 CAD Model

Description

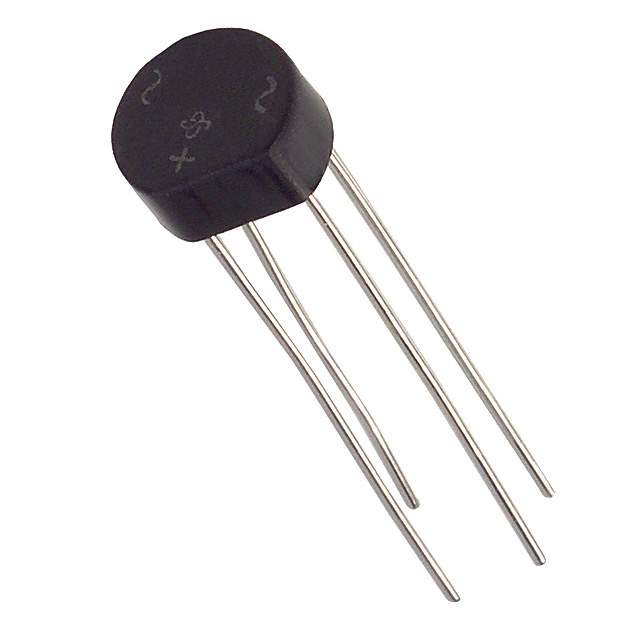

The Vishay Semiconductor Diodes Division 2W04G series is a single-phase diode type from Vishay Semiconductor Diodes Division.

  • Package: 4-circular, WOG
  • Voltage Rating: 400V
  • Current Rating: 2A
  • Current-Average Rectified (Io): 2A
  • Current-Reverse Leakage: 5μA @ 400V
  • Voltage-Peak Reverse (Maximum): 400V
  • Voltage-Forward: 1.1V @ 2A
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Halogen Free: Yes
  • Alternative Parts: 2W04G, 2W04G_Q
  • Introduction Date: June 18, 1998
  • Estimated EOL Date: 2030
