Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SMF
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 5.6A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number SMF22
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 669095-SMF22CA
Ultra Librarian 3D Model Ultra Librarian SMF22CA CAD Model

Description

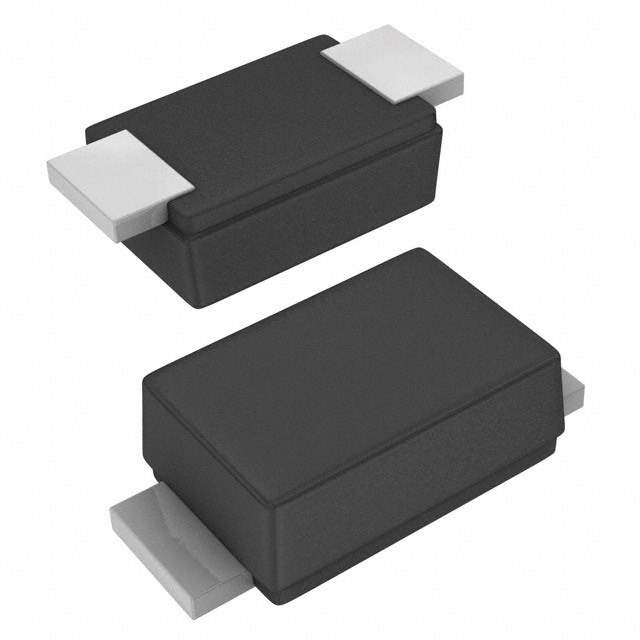

The SMF22CA is a Zener type TVS diode designed for general-purpose circuit protection.

  • Series: SMF
  • Package: Surface mount (SOD-123F)
  • Reverse Standoff Voltage: 22V
  • Breakdown Voltage: 24.4V
  • Protection: Bidirectional
  • Clamping Voltage: 35.5V @ a peak pulse power of 200W
  • Operating Temperature Range: -65°C to 150°C
  • Standard Quantity: 3,000 pcs
  • Manufacturer: Littelfuse Inc.
  • Power Line Protection: No
  • Capacitance @ Frequency: Not specified
  • Status: Active
  • California Prop 65: Complies
