Same model may have multiple batches, images only for reference.

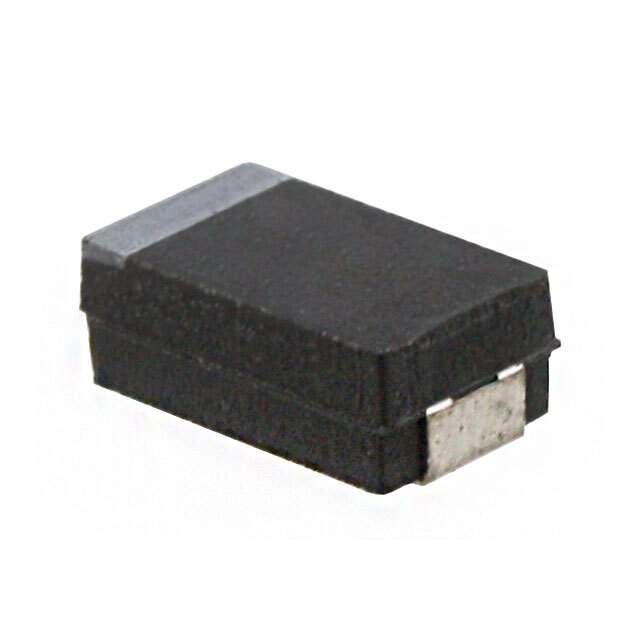

293D686X0020D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D686X0020D2TE3

Part No 293D686X0020D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 68UF 20% 20V 2917 / 68 µF Molded Tantalum Capacitors 20 V 2917 (7343 Metric) 700mOhm
Datasheet
293D686X0020D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Manufacturer Vishay Sprague
Packaging Reel - TR
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 700mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Surface Mount
Case / Package 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 500
Win Source Part Number 1330931-293D686X0020D2TE3
Ultra Librarian 3D Model Ultra Librarian 293D686X0020D2TE3 CAD Model

Description

The Vishay Sprague 293D686X0020D2TE3 is a surface mount tantalum capacitor with a capacitance of 68 μF and a voltage rating of 20 V.

  • Mounting Type: Surface Mount
  • Capacitance: 68 μF
  • Voltage Rating: 20 V
  • Tolerance: ±20%
  • ESR: 700mOhm
  • Category: Capacitors
  • Size/Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.122" (3.10mm)
  • Supply and Demand Status: Balanced
  • Standard Package: 500
