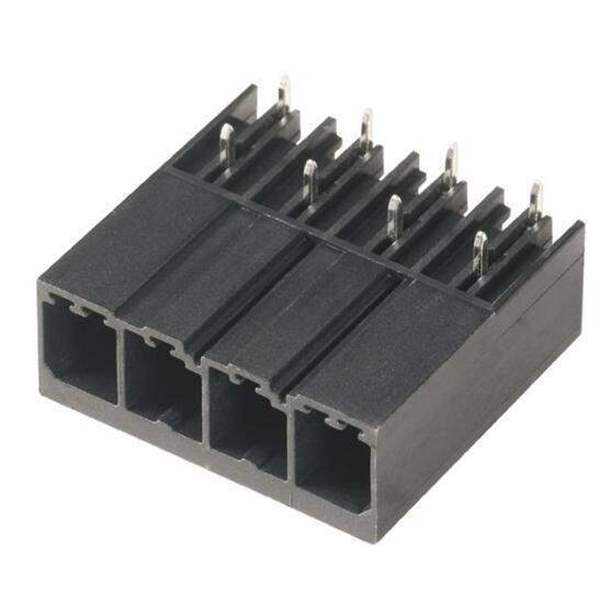

1931260000Weidmüller
Same model may have multiple batches, images only for reference.

1931260000

Part No 1931260000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 90DEG 7.62MM
Datasheet
1931260000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate SV
Package Bulk
Product Status Active
Type Header, Blade Pins
Pitch 0.300" (7.62mm)
Header Orientation 90°, Right Angle, Under Board
Termination Style Solder
Mounting Type Through Hole
Current - IEC 41A
Voltage - IEC 1 kV
Win Source Part Number WS1206688-1931260000
Ultra Librarian 3D Model Ultra Librarian 1931260000 CAD Model

Description

Single-row, high-current and high-performance male headers for side-by-side mounting without sacrificing any poles or with flange for fast fixing without tools. Maximum connection and operating reliability thanks to a mating profile that prevents incorrect connection, unique coding diversity and additional fastening in the flange.
