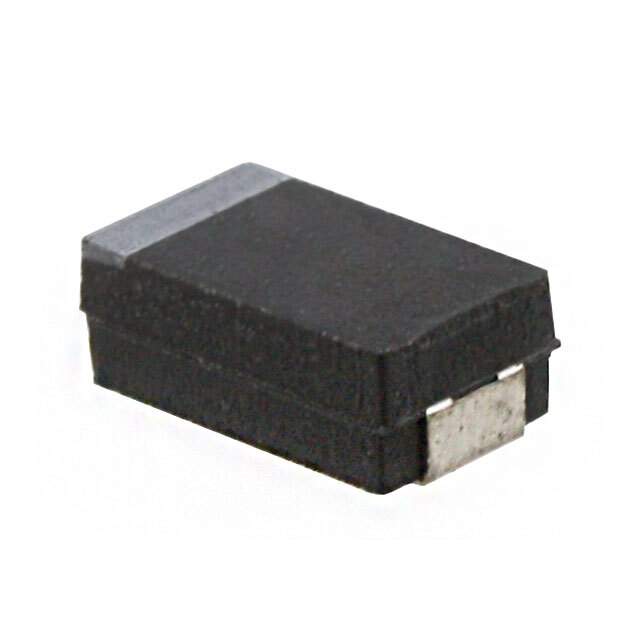

293D685X0035D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D685X0035D2TE3

Part No 293D685X0035D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 35V 20% 2917
Datasheet
293D685X0035D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 293D
Packaging Reel package
Capacitance 6.8μF
Tolerance ±20%
Voltage Rating DC 35V
Type Molded
ESR (Equivalent Series Resistance) 1.1 Ohm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 762128-293D685X0035D2TE3
Popularity Medium
Supply and Demand Status Limited
Family Name 293D
Introduction Date September 25, 2001
ECCN EAR99
Country of Origin China, Israel
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 293D685X0035D2TE3 CAD Model

Description

The Vishay Sprague 293D685X0035D2TE3 is a TANTAMOUNT, 293D series, molded type capacitor from Vishay Sprague.

  • Capacitance: 6.8μF
  • Voltage Rating DC: 35V
  • Mounting: SMD
  • Tolerance: ±20%
  • ESR: 1.1 Ohm
  • Operating Temperature Range: -55°C to 125°C
  • Compliance: RoHS
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height (Seated): 0.122" (3.10mm)
  • Supply and Demand Status: Limited
