Same model may have multiple batches, images only for reference.

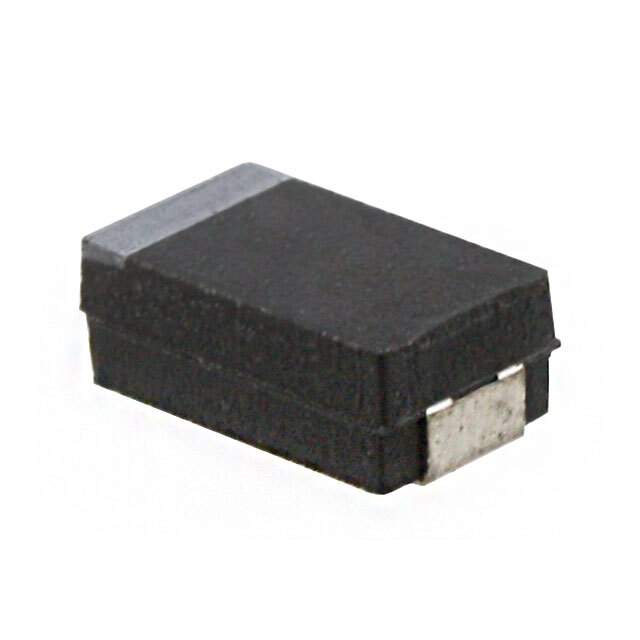

293D477X96R3D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D477X96R3D2TE3

Part No 293D477X96R3D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 470UF 6.3V 10% 2917
Datasheet
293D477X96R3D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 293D
Packaging Reel package
Capacitance 470μF
Tolerance ±10%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 500 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 762127-293D477X96R3D2TE3
Popularity Medium
Supply and Demand Status Limited
Family Name 293D
Introduction Date September 25, 2001
ECCN EAR99
Country of Origin Israel
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 293D477X96R3D2TE3 CAD Model

Description

The Vishay Sprague 293D477X96R3D2TE3 is a TANTAMOUNT capacitor from Vishay Sprague.

  • Capacitance: 470μF
  • Voltage Rating DC: 6.3V
  • Category: Capacitors
  • Family: 293D
  • Package: Reel
  • Mounting: SMD
  • Operating Temperature Range: -55°C to 125°C
  • ESR (Equivalent Series Resistance): 500 mOhm
  • Tolerance: ±10%
  • Halogen-free: Yes
  • ECCN: EAR99
  • Manufacturer Size Code: D
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height-Seated (Maximum): 0.122" (3.10mm)
  • Alternative Parts (Cross-reference): T491D477K006ZTZV10, 293D477X96R3D8W, 293D477X96R3D8R
  • Introduction Date: September 25, 2001
  • Estimated EOL Date: 2027
