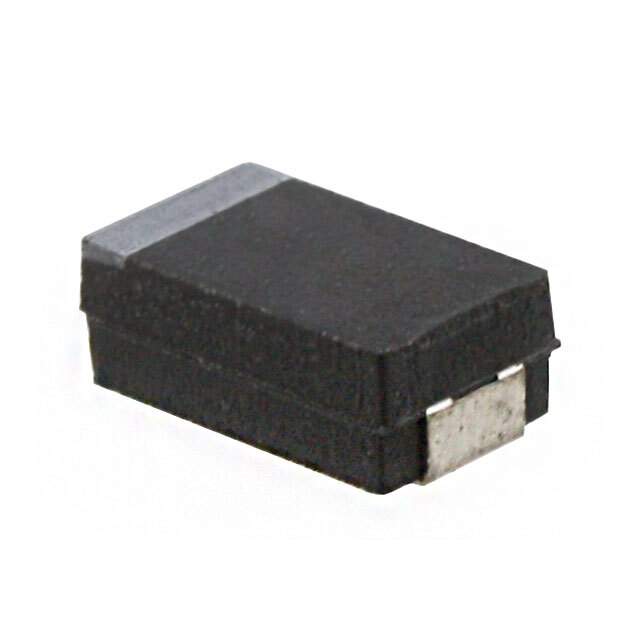

293D476X0010D2TE3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 293D
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 700mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 718-1936-6,293D476X0010D2TE3-ND,718-1936-2,718-1936-1
Standard Package 500
Win Source Part Number 1018064-293D476X0010D2TE3
Ultra Librarian 3D Model Ultra Librarian 293D476X0010D2TE3 CAD Model

Description

The Vishay Sprague 293D476X0010D2TE3 is a high-performance electronic component that is manufactured by Vishay Sprague.

  • Capacitance: 47 μF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • ESR: 700mOhm
  • Package: Molded
  • Packaging: Tape and reel
  • Win Source Part Number: 1018064-293D476X0010D2TE3
  • Standard Package: 500
