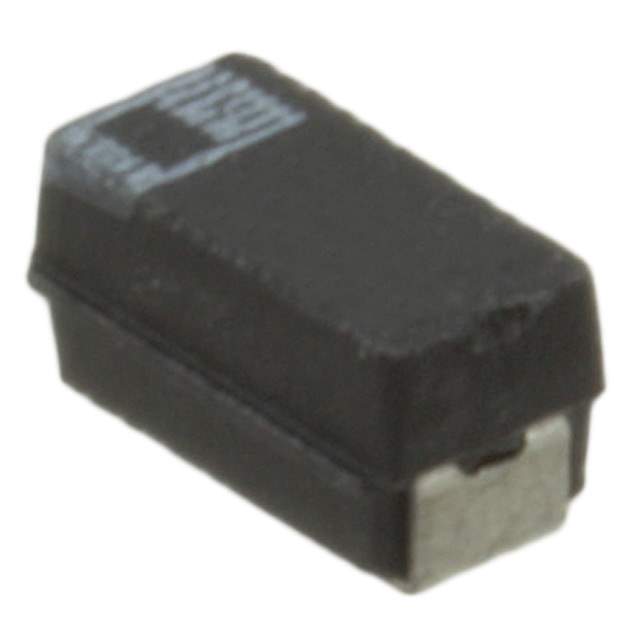

The 293D226X96R3A2T is a solid tantalum chip capacitor manufactured by Vishay. This capacitor is part of the 293D series, known for its molded case, reliable performance, and suitability for a wide range of applications.

Applications

• Power supply decoupling.
• Filtering in electronic circuits.
• Signal processing.
• Embedded systems.
• DC-DC converters.

Features

• Molded Case: Provides mechanical protection and precise dimensions for automated assembly.
• Solid Tantalum Construction: Ensures high reliability and stability.
• RoHS Compliant: Meets environmental standards for lead-free manufacturing.
• High Volumetric Efficiency: Offers large capacitance values in a small footprint.
• Capacitance Value: 22µF (microfarads)
• Voltage Rating: 6.3V (volts)
• Operating Temperature Range: Typically -55°C to +125°C (consult the datasheet for exact specifications).

Benefits

• High Reliability: Solid tantalum construction provides long-term stability and performance.
• Compact Size: Allows for use in space-constrained applications.
• Easy Assembly: Surface-mount design simplifies automated assembly processes.
• Stable Performance: Offers consistent electrical characteristics over a wide range of operating conditions.
• Low ESR: Contributes to efficient circuit operation by minimizing power losses.

Additional Details

The 293D series is a common choice for many electronic devices, including consumer electronics, industrial equipment, and telecommunications. The "A2T" suffix likely indicates a specific case size and packaging. The 226 represents a capacitance of 22 microfarads, and 6R3 indicates a voltage rating of 6.3V. Always refer to the manufacturer's datasheet for comprehensive specifications, including ESR, ripple current ratings, and temperature derating.
