Same model may have multiple batches, images only for reference.

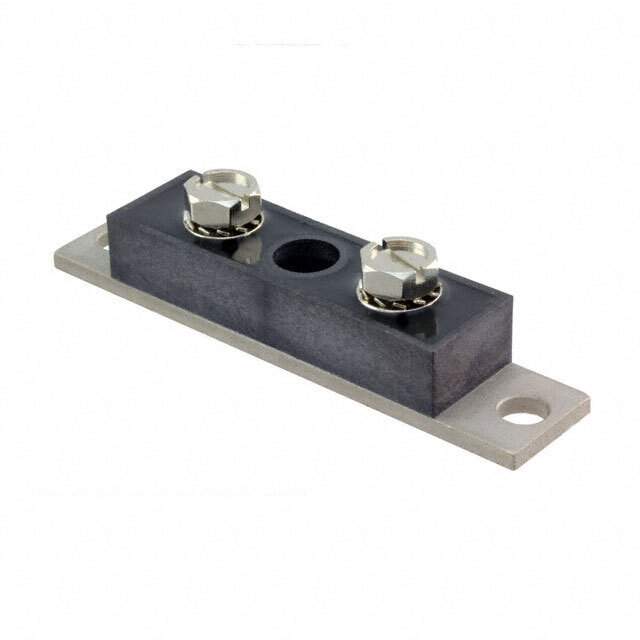

200CNQ035 Real Image
Same model may have multiple batches, images only for reference.

200CNQ035

Part No 200CNQ035
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE MODULE 35V 100A TO244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 35V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Maximum) at If 540mV at 100A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 10mA at 35V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Chassis Mount
Manufacturer Package TO-244AB
Supplier Device Package TO-244AB
Family Part Number 200CNQ*
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1122844-200CNQ035
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 200CNQ035 CAD Model

Description

The 200CNQ035 is a Schottky diode with a fast recovery speed of 200mA (Io) manufactured by Vishay Semiconductor Diodes Division.

  • Recovery Speed: fast, 200mA (Io)
  • Diode Configuration: 1 pair common cathode
  • Maximum Reverse Voltage: 35V
  • Supply and Demand Status: limited
  • Current Average Rectified (Io): 100A
  • Voltage Forward (Vf): 540mV @ 100A
  • Operating Temperature Range: -55°C to 175°C
  • Mounting Style: chassis mount
