Same model may have multiple batches, images only for reference.

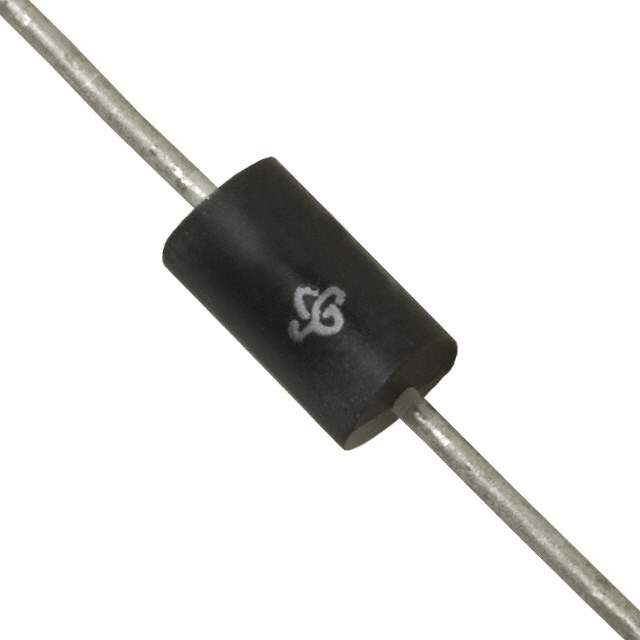

1.5KE75A-E3/54 Real Image
Same model may have multiple batches, images only for reference.

1.5KE75A-E3/54

Part No 1.5KE75A-E3/54
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 64.1VWM 104VC 1.5KE
Datasheet
1.5KE75A-E3/54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 64.1V
Minimum Breakdown Voltage 71.3V
Max Clamping Voltage 104V
Peak Pulse Current(Ippm) 14.6A
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package 1.5KE
Win Source Part Number 118786-1.5KE75A-E3/54
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1.5KE75A-E3/54 CAD Model

Description

1.5KE75A-E3/54 Transient Voltage Suppressor Diode

The 1.5KE75A-E3/54 is a transient voltage suppressor diode designed to protect sensitive electronic equipment from voltage spikes and transients. This model is known for its high surge capability, ensuring reliable performance in overvoltage protection applications.

  • Applications:
    • Power Supply Protection
    • Telecommunication Equipment
    • Industrial Controls
    • Consumer Electronics
  • Features and Benefits:
    • Peak Pulse Power Dissipation: 1500W
    • Stand-off Voltage: 75V
    • Low Clamping Ratio
    • Fast Response Time
  • Additional Details:
    • Package: DO-201
    • Polarity: Unidirectional
    • High reliability due to glass passivated junction
