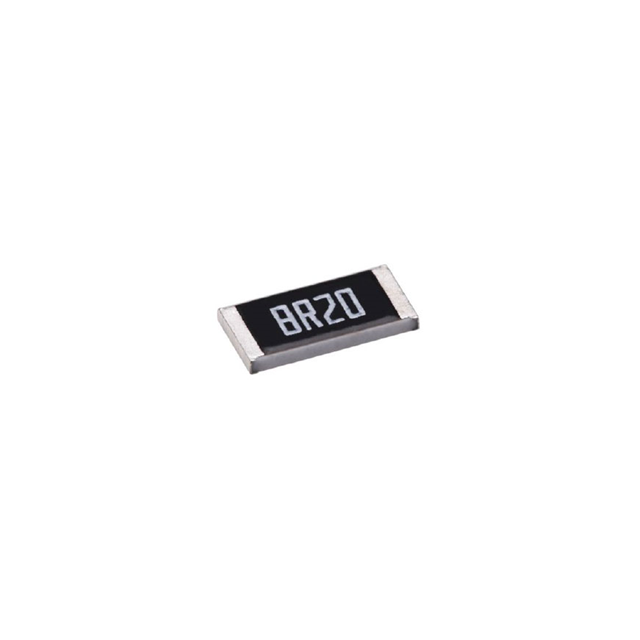

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Viking Tech
Series AR
Package Tape & Reel (TR)
Resistance 1.5 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
Base Product Number AR02BTC
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
Win Source Part Number 1315158-AR02BTC1501A
Ultra Librarian 3D Model Ultra Librarian AR02BTC1501A CAD Model

Description

The AR02BTC1501A chip resistor from Viking Tech is a high-quality surface mount resistor that is designed for use in a range of applications. AR02BTC1501A from Viking Tech

  • Packaging: Tape & Reel (TR)
  • Height - Seated (Max): 0.014" (0.35mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Ratings: AEC-Q200
  • Power (Watts): 0.063W, 1/16W
  • Resistance: 1.5 kOhms
  • Package/Case: 0402 (1005 Metric)
  • MSL Level: 1 (Unlimited)
  • REACH: REACH Info Available Upon Request
  • Base Product Number: AR02BTC
