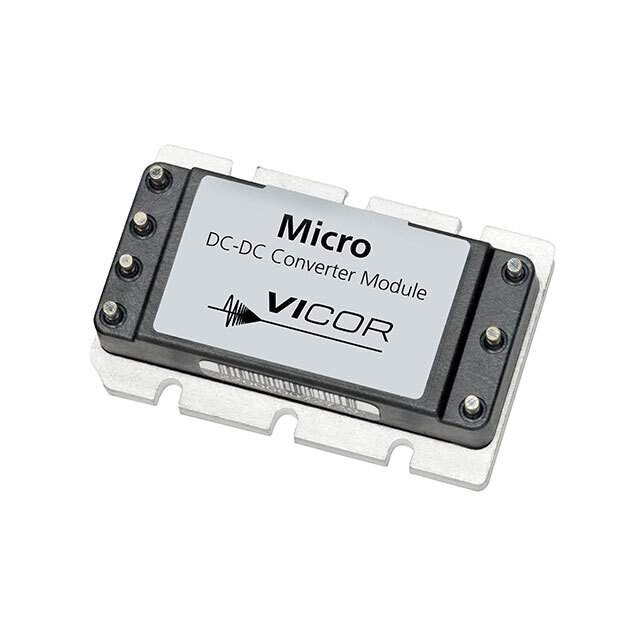

Same model may have multiple batches, images only for reference.

V300C24T75BL

Name: V300C24T75BL
Brand: Vicor Corporation
SKU: 1202121
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	V300C24T75BL
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 75W / Isolated Module DC DC Converter 1 Output 24V 3.13A 180V - 375V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Vicor Corporation
Series	MICRO (75W)
Package	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	180V
Voltage - Input (Max)	375V
Voltage - Output 1	24V
Current - Output (Max)	3.13A
Power (Watts)	75 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	OVP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	86.4%
Mounting Type	Through Hole
Package / Case	Quarter Brick
Dimension	2.28" L x 1.45" W x 0.65" H (57.9mm x 36.8mm x 16.5mm)
Base Product Number	V300C24T75
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	1
Win Source Part Number	1202121-V300C24T75BL
Ultra Librarian 3D Model	Ultra Librarian V300C24T75BL CAD Model

Alternative Products

Description

The V300C24T75BL is a DC-DC converter module from the MICRO (75W) series manufactured by Vicor Corporation.

Isolation: Isolated module
Voltage Isolation: 3 kV
Features: OVP and UVLO
Package: Bulk
Standard Package: 1
Application: ITE (Commercial)
Power: 75 W
Output Current: 3.13A
Input Voltage: 180V to 375V
Output Voltage: 24V
Efficiency: 86.4%
Package/Case: Quarter brick
Operating Temperature: -40°C to 100°C
