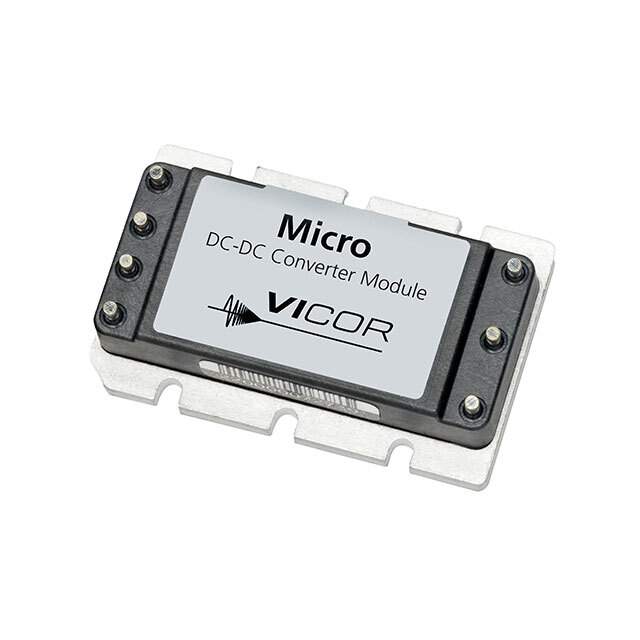

V24C5M100BN Real Image1 V24C5M100BN Real Image2
Same model may have multiple batches, images only for reference.
V24C5M100BN Real Image1 V24C5M100BN Real Image2
V24C5M100BN Real Image1 V24C5M100BN Real Image2
Same model may have multiple batches, images only for reference.

V24C5M100BN

Part No V24C5M100BN
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 100W / Isolated Module DC DC Converter 1 Output 5V 20A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Vicor Corporation
Series MICRO (100W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 20A
Power (Watts) 100 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features OVP, UVLO
Temperature Range - Operating -55°C ~ 100°C
Efficiency 84%
Mounting Type Through Hole
Package / Case Quarter Brick
Size / Dimension 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Base Product Number V24C5
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1383821-V24C5M100BN
Ultra Librarian 3D Model Ultra Librarian V24C5M100BN CAD Model

Description

The V24C5M100BN is an isolated DC-DC converter module from the MICRO (100W) series. It features overvoltage protection (OVP) and undervoltage lockout (UVLO) for reliable power delivery.

  • Protection Features: Overvoltage Protection (OVP), Undervoltage Lockout (UVLO)
  • Power Rating: 100W
  • Output Current: 20A (Max)
  • Application: ITE (Commercial)
  • Input Voltage: 18V to 36V
  • Output Voltage: 5V
  • Mounting Type: Through Hole
  • Package / Case: Quarter Brick
  • Operating Temperature: -55°C to 100°C
  • Voltage Isolation: 3kV
  • Manufacturer: Vicor Corporation
