Same model may have multiple batches, images only for reference.

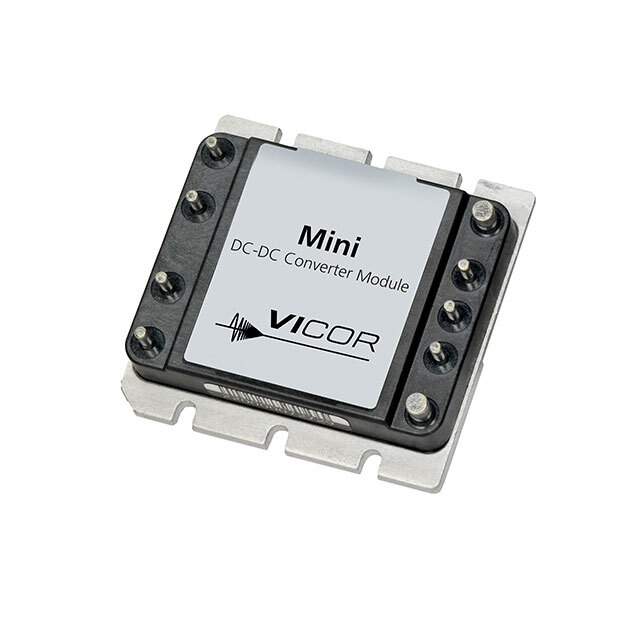

V24B28H200BL Real Image
Same model may have multiple batches, images only for reference.

V24B28H200BL

Part No V24B28H200BL
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V 200W / Isolated Module DC DC Converter 1 Output 28V 7.14A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series MINI (200W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 28V
Current - Output (Max) 7.14A
Power (Watts) 200 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features OVP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 2.28" L x 2.20" W x 0.50" H (57.9mm x 55.9mm x 12.7mm)
Base Product Number V24B28H200
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1338021-V24B28H200BL
Ultra Librarian 3D Model Ultra Librarian V24B28H200BL CAD Model

Description

The 1338021-V24B28H200BL is a DC-DC converter component from Vicor Corporation.

  • Series: MINI (200W)
  • Type: Isolated Module
  • Features: OVP, UVLO
  • Package Type: Bulk
  • Size / Dimension: 2.28 inches L x 2.20 inches W x 0.50 inches H (57.9mm x 55.9mm x 12.7mm)
  • Applications: ITE (Commercial)
  • Standard Package: 1
  • Power (Watts): 200W
  • Voltage Isolation: 3kV
  • Number of Outputs: 1
  • Output Current (Max): 7.14A
  • Voltage - Input: 18V to 36V
  • Voltage - Output: 28V
  • Efficiency: 87%
  • Mounting Type: Through Hole
  • Package / Case: 9-DIP Module
  • Operating Temperature: -40°C ~ 100°C
  • ECCN: EAR99
