Same model may have multiple batches, images only for reference.

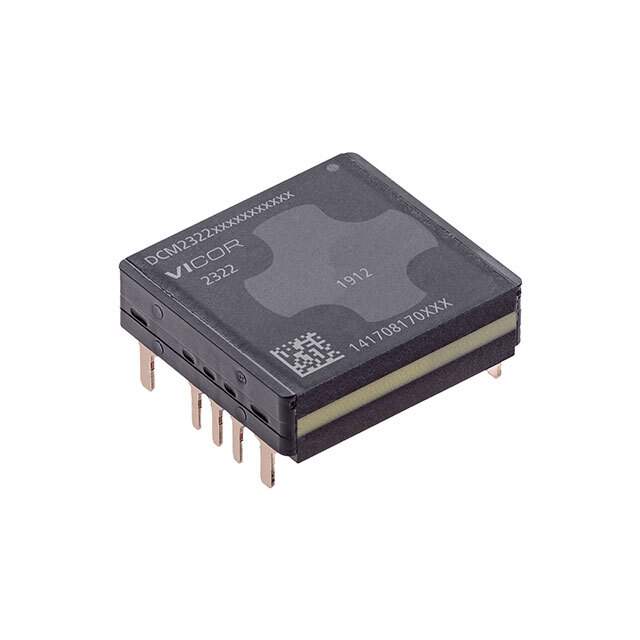

DCM2322T72S0650T60 Real Image
Same model may have multiple batches, images only for reference.

DCM2322T72S0650T60

Part No DCM2322T72S0650T60
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 50W / Isolated Module DC DC Converter 1 Output 5V 10A 14V - 72V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM®
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 14V
Voltage - Input (Max) 72V
Voltage - Output 1 5V
Current - Output (Max) 10A
Power (Watts) 50 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 125°C
Efficiency 86.1%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Approval Agency CE
Base Product Number DCM2322
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1340486-DCM2322T72S0650T60
Ultra Librarian 3D Model Ultra Librarian DCM2322T72S0650T60 CAD Model

Description

The Vicor Corporation DCM2322T72S0650T60 is an isolated module type DC-DC converter with an adjustable output feature. Vicor Corporation.

  • Converter Type: Isolated Module
  • Packaging: Tray
  • Dimensions: 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
  • Application: ITE (Commercial)
  • Power Rating: 50W
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Maximum Output Current: 10A
  • Input Voltage: 14V to 72V
  • Output Voltage: 5V
  • Efficiency: 86.1%
  • Mounting Type: Through Hole
  • Package: 9-DIP Module
  • Operating Temperature: -40°C to 125°C
  • Approvals: CE
