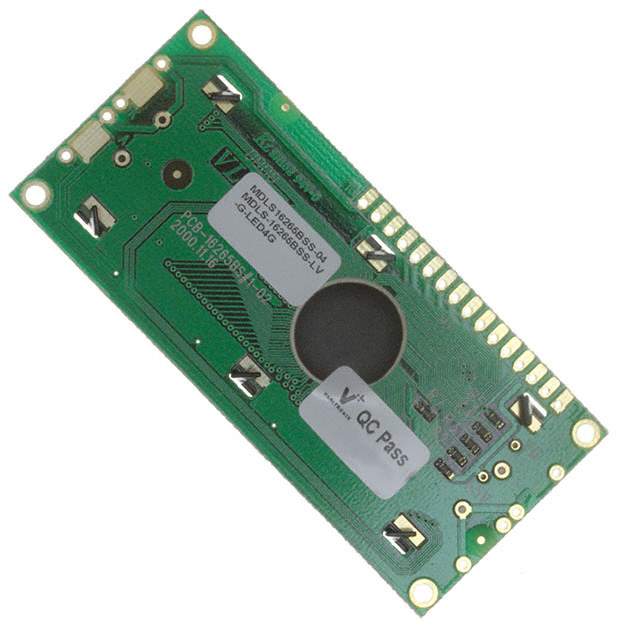

MDLS-16265B-SS-LV-G-LED04G

Part No MDLS-16265B-SS-LV-G-LED04G
Manufacturer Varitronix international limited
Catalog Display Modules - LCD, OLED Character and Numeric
Description LCD MOD 32DIG 16X2 TRANSFLCT GRN / Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Green Parallel 80.00mm x 36.00mm x 9.80mm
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LCD, OLED Character and Numeric
Mfr Varitronix
Series MDL(S) -16265B
Package Box
Product Status Obsolete
Number of Characters 32
Display Format 16 x 2
Character Format 5 x 8 Dots
Display Type STN - Super-Twisted Nematic
Display Mode Transflective
Character Size 5.55mm H x 2.95mm W
Outline L x W x H 80.00mm x 36.00mm x 9.80mm
Viewing Area 61.00mm L x 15.80mm W
Backlight LED - Green
Voltage - Supply 5V
Dot Size 0.55mm W x 0.65mm H
Interface Parallel
Temperature Range - Operating -5°C ~ 50°C
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0020
Win Source Part Number 1350539-MDLS-16265B-SS-LV-G-LED04G
Ultra Librarian 3D Model Ultra Librarian MDLS-16265B-SS-LV-G-LED04G CAD Model

Description

The MDL(S)-16265B is a high-quality LCD display module from Varitronix.

  • Display Format: 16 x 2
  • Display Type: STN (Super-Twisted Nematic)
  • Character Format: 5 x 8 dots
  • Display Mode: Transflective
  • Character Size: 5.55mm H x 2.95mm W
  • Viewing Area: 61.00mm L x 15.80mm W
  • Backlight: LED - Green
  • Voltage Supply: 5V
  • Operating Temperature: -5°C to 50°C
  • Package: Box
  • Standard Package: 50
  • Status: Obsolete
