Same model may have multiple batches, images only for reference.

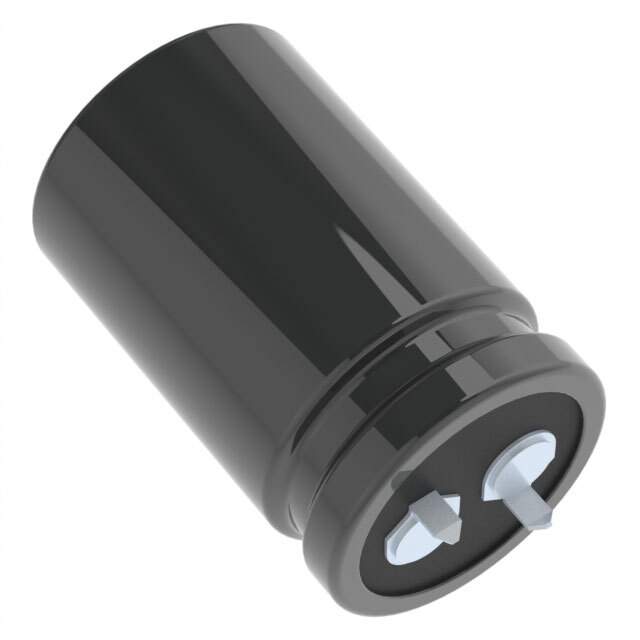

SMQ450VS221M25X40T2 Real Image
Same model may have multiple batches, images only for reference.

SMQ450VS221M25X40T2

Part No SMQ450VS221M25X40T2
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Datasheet
SMQ450VS221M25X40T2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMQ
Package Tray
Product Status Obsolete
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 1.507Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.55 A @ 120 Hz
Ripple Current @ High Frequency 2.2165 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 1.575" (40.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307264-SMQ450VS221M25X40T2
Ultra Librarian 3D Model Ultra Librarian SMQ450VS221M25X40T2 CAD Model

Description

The SMQ series aluminum electrolytic capacitor from United Chemi-Con is designed for general-purpose applications. United Chemi-Con

  • Capacitance: 220 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • ESR: 1.507 Ohm @ 120 Hz
  • Ripple Current (Low Frequency): 1.55 A @ 120 Hz
  • Ripple Current (High Frequency): 2.2165 A @ 50 kHz
  • Model: SMQ450VS221M25X40T2
  • Lifetime: 2,000 hours @ 85°C
  • Polarization: Polarized
  • Package: radial, can - snap-in
  • Mounting Type: through hole
  • Lead Spacing: 0.394 inches (10.00 mm)
  • Dimension: 1.000 inches (25.40 mm) in diameter
  • ECCN: EAR99 compliant
  • Status: Obsolete
  • RoHS Compliance: Non-RoHS compliant
