Same model may have multiple batches, images only for reference.

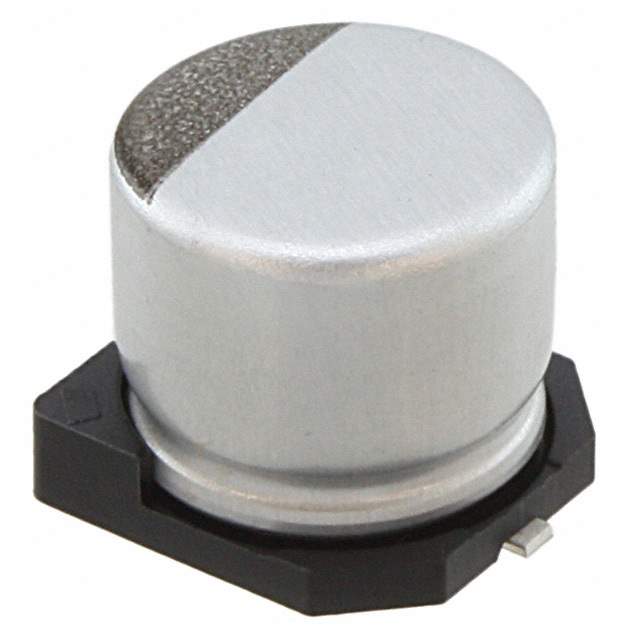

HHXA350ARA470MF61G Real Image
Same model may have multiple batches, images only for reference.

HHXA350ARA470MF61G

Part No HHXA350ARA470MF61G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series HXA
Package Tape & Reel
Product Status Not For New Designs
Type Hybrid
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 60mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 900 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-4163-1,565-4163-2,HHXA350ARA470MF61G,565-4163-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308428-HHXA350ARA470MF61G
Ultra Librarian 3D Model Ultra Librarian HHXA350ARA470MF61G CAD Model

Description

The United Chemi-Con HXA series of aluminum-polymer capacitors are designed for automotive applications.

  • Capacitance: 47 µF
  • Voltage Rating: 35 V
  • Package: Radial, Can - SMD
  • Diameter: 0.248"
  • Height: 0.240"
  • Tolerance: ±20%
  • ESR: 60mOhm
  • Lifetime: 4000 Hrs @ 125°C
  • Polarization: Polarized
  • AEC-Q200: Rated
  • Ripple Current: 900 mA @ 100 kHz
  • For New Designs: No
  • Standard Package: 1000
