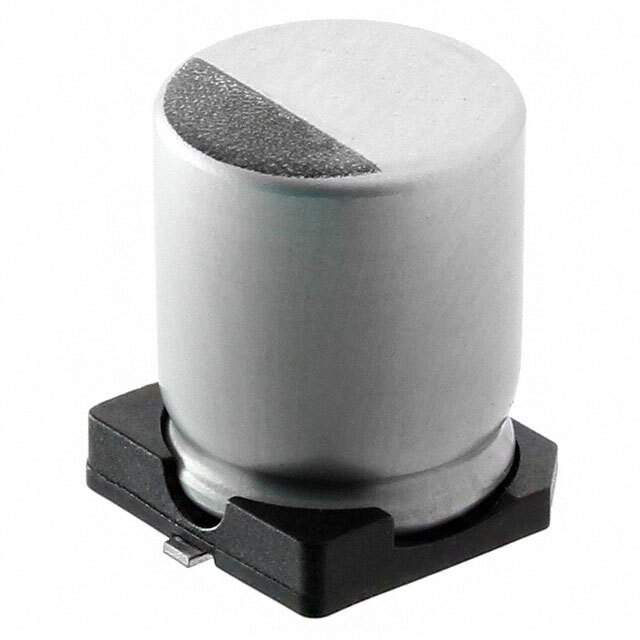

EMZR500ARA470MF61G Real Image
Same model may have multiple batches, images only for reference.

EMZR500ARA470MF61G

Part No EMZR500ARA470MF61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZR
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 680mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 78 mA @ 120 Hz
Ripple Current @ High Frequency 195 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-5152-1,565-5152-2,565-5152-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307274-EMZR500ARA470MF61G
Ultra Librarian 3D Model Ultra Librarian EMZR500ARA470MF61G CAD Model

Description

The Alchip™- MZR series from United Chemi-Con offers a high-quality aluminum electrolytic capacitor that is perfect for automotive applications. United Chemi-Con

  • Capacitance: 47 µF
  • Voltage Rating: 50V
  • Polarization: Polarized
  • Package: radial, can - SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height: 0.240" (6.10mm)
  • ESR: 680mOhm @ 100kHz
  • Lifetime: 2000 Hrs @ 105°C
  • Rating: AEC-Q200
  • Application: Automotive
