Same model may have multiple batches, images only for reference.

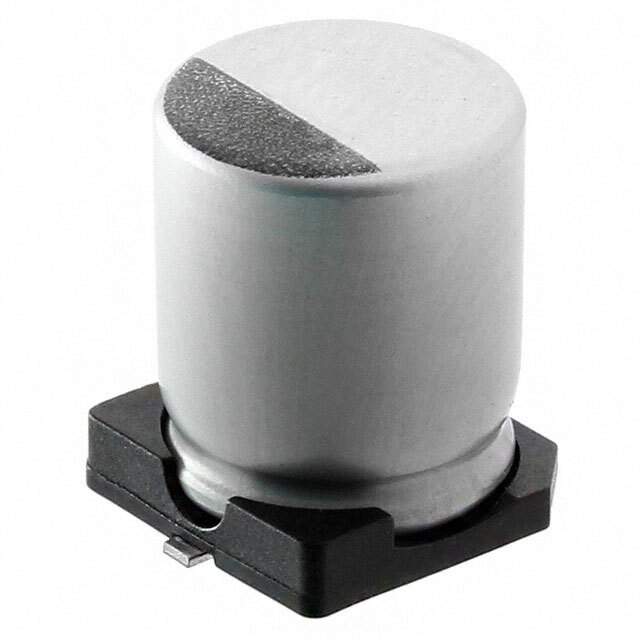

EMZR500ARA101MF80G Real Image
Same model may have multiple batches, images only for reference.

EMZR500ARA101MF80G

Part No EMZR500ARA101MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZR
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 340mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 350 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-5153-1,565-5153-6,565-5153-2
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307279-EMZR500ARA101MF80G
Ultra Librarian 3D Model Ultra Librarian EMZR500ARA101MF80G CAD Model

Description

The EMZR500ARA101MF80G is an aluminum electrolytic capacitor from the Alchip™- MZR series manufactured by United Chemi-Con. United Chemi-Con

  • Series: Alchip™- MZR series
  • Application: Automotive
  • Package: radial, can - SMD
  • Capacitance: 100 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR: 340mOhm @ 100kHz
  • Lifetime: 2000 Hrs @ 105°C
