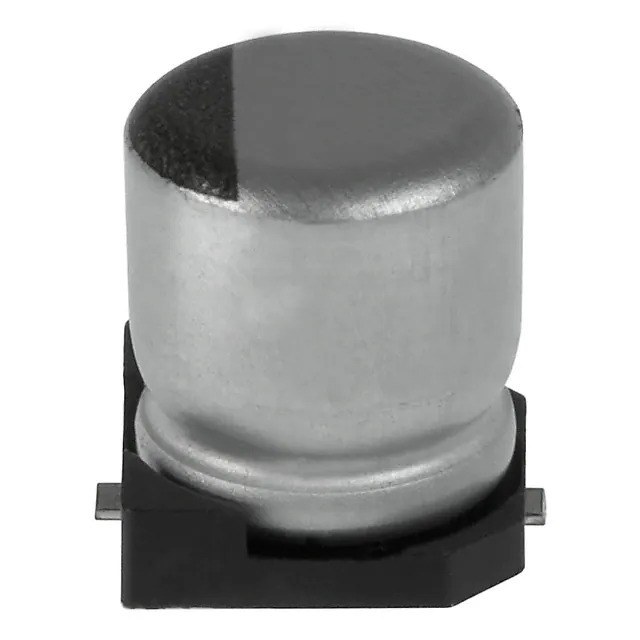

EMZE160ARA221MF90G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZE160ARA221MF90G

Part No EMZE160ARA221MF90G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZE
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 1 Ohms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.354" (9.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360243-EMZE160ARA221MF90G
Ultra Librarian 3D Model Ultra Librarian EMZE160ARA221MF90G CAD Model

Description

The 1360243-EMZE160ARA221MF90G is a surface mount aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MZE series.

  • Capacitance: 220 μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Application: General-Purpose
  • Ripple Current (120 Hz): 115 mA
  • Ripple Current (100 kHz): 230 mA
  • Package: Radial, Can-type SMD
  • Diameter: 0.248 inches (6.30 mm)
  • Seated Height: 0.354 inches (9.00 mm)
  • Lifetime: 8000 hours @ 105°C
  • Mounting Type: Surface Mount
  • Features: Low Impedance, High Reliability
