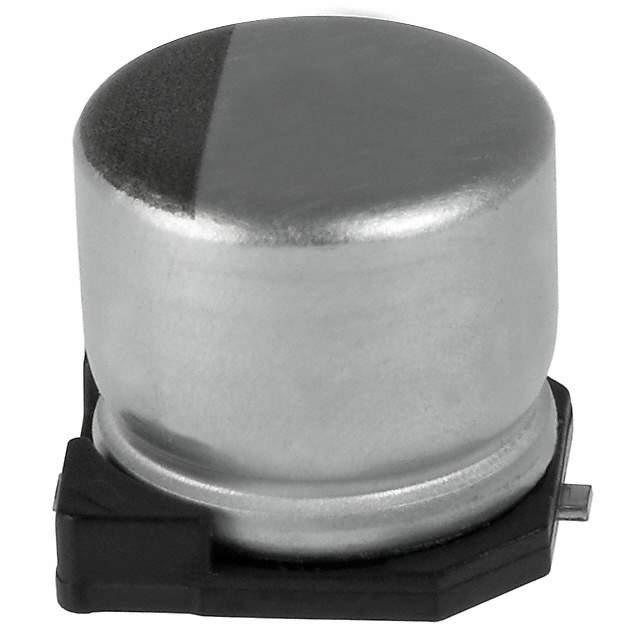

EMZA500ADA220MF61G Real Image
Same model may have multiple batches, images only for reference.

EMZA500ADA220MF61G

Part No EMZA500ADA220MF61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 66 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Impedance 880 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-2566-2,565-2566-1,565-2566-6,Q4696900
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307281-EMZA500ADA220MF61G
Ultra Librarian 3D Model Ultra Librarian EMZA500ADA220MF61G CAD Model

Description

The United Chemi-Con Alchip™- MZA series aluminum electrolytic capacitor is a high-quality component designed for automotive applications.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): -
  • Package: Radial, can
  • Mounting Type: SMD (SMT)
  • Height: 0.240" (6.10mm)
  • Diameter: 0.248" (6.30mm)
  • Polarized: Yes
  • Lifetime: 2000 Hrs @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
