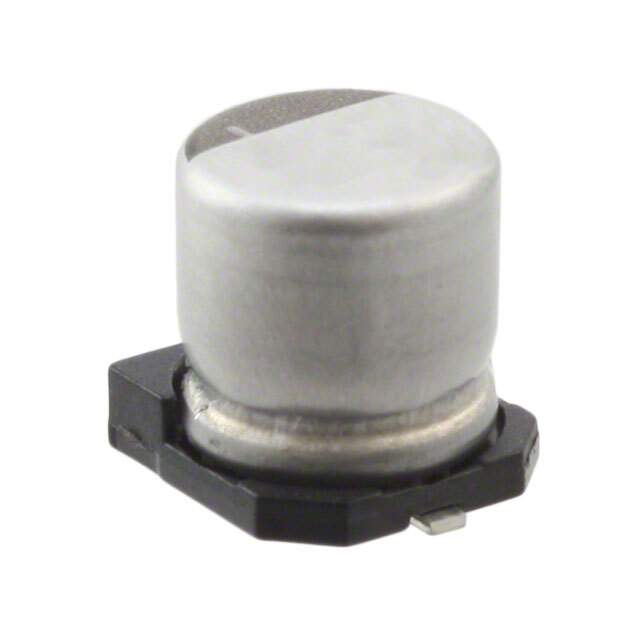

EMVY160ADA220ME55G Real Image
Same model may have multiple batches, images only for reference.

EMVY160ADA220ME55G

Part No EMVY160ADA220ME55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Reel - TR
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 38 mA @ 120 Hz
Ripple Current @ High Frequency 95 mA @ 100 kHz
Impedance 1.8 Ohms
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-2443-6,565-2443-1,565-2443-2
Standard Package 1,000
Win Source Part Number 1331425-EMVY160ADA220ME55G
Ultra Librarian 3D Model Ultra Librarian EMVY160ADA220ME55G CAD Model

Description

This aluminum electrolytic capacitor from United Chemi-Con is designed for general purpose applications.

  • Manufacturer: United Chemi-Con
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • Package: surface mount package
  • Case: radial, can - SMD
  • ESR: not specified
  • Impedance: 1.8 Ohms
  • Ripple Current: 38 mA @ 120 Hz and 95 mA @ 100 kHz
  • Temperature Range: -55°C to 105°C
  • Lifetime: 1000 hours @ 105°C
  • Polarized: Yes
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Standard Package: 1,000
  • ECCN: EAR99
  • Compliance: ROHS3 compliant
  • HTSUS: 8532.22.0020
