Same model may have multiple batches, images only for reference.

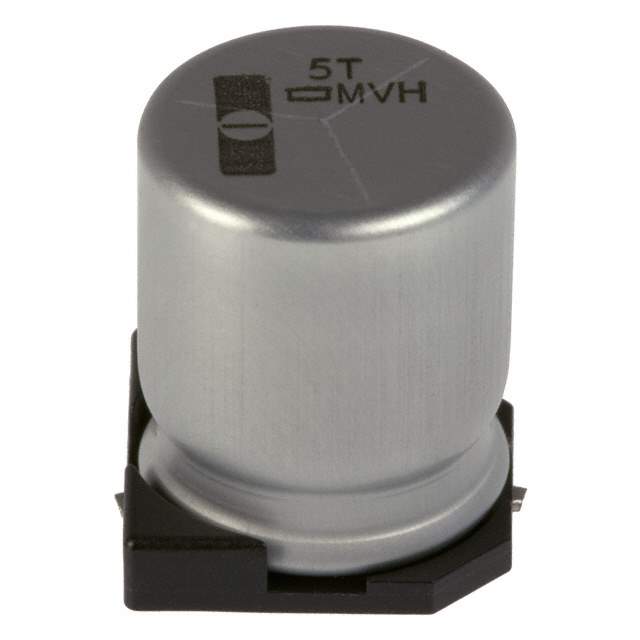

EMVH630ARA221MKG5S Real Image
Same model may have multiple batches, images only for reference.

EMVH630ARA221MKG5S

Part No EMVH630ARA221MKG5S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 63V SMD / High heat resistance, 125C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer United Chemi-Con
Packaging Reel
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 63V
ESR (Equivalent Series Resistance) 200mOhm at 100kHz
Lifetime at Temp. 5000 Hrs at 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications Automotive
Ripple Current at Low Frequency 300mA at 120Hz
Ripple Current at High Frequency 600mA at 100kHz
Dimension 0.492" Dia (12.50mm)
Height - Seated (Maximum) 0.630" (16.00mm)
Surface Mount Land Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809625-EMVH630ARA221MKG5S
Ultra Librarian 3D Model Ultra Librarian EMVH630ARA221MKG5S CAD Model

Description

The United Chemi-Con 809625-EMVH630ARA221MKG5S electronic component is manufactured by United Chemi-Con and is designed for automotive applications.

  • Packaging: Reel
  • Mounting: Surface Mount
  • Capacitance: 220μF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • ESR (Equivalent Series Resistance): 200mOhm @ 100kHz
  • Polarization: Yes
  • Surface Mount Land Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.492" Dia (12.50mm)
  • Package: Radial, can - SMD
  • Seated Height: 0.630" (16.00mm)
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (Unlimited)
  • Lifetime: 5000 Hrs @ 125°C
  • Ripple Current at Low Frequency: 300mA @ 120Hz
  • Ripple Current at High Frequency: 600mA @ 100kHz
