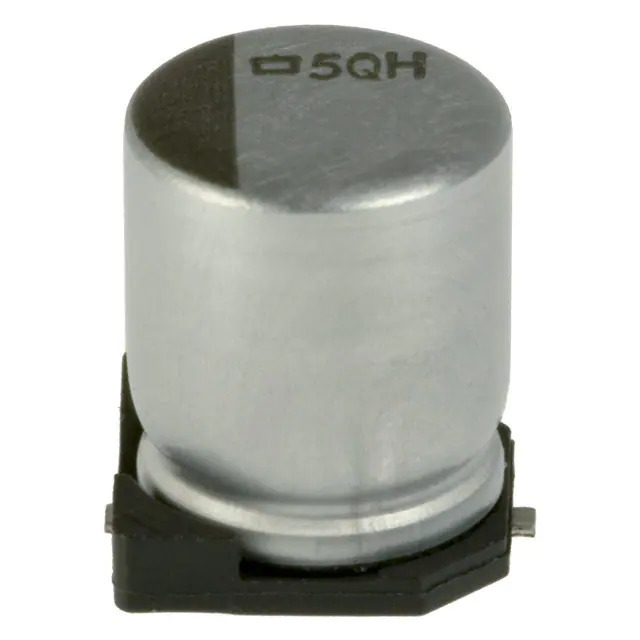

EMVH500ARA220MF80G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMVH500ARA220MF80G

Part No EMVH500ARA220MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000mOhm @ 100kHz 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVH
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 2000mOhm @ 100kHz
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings -
Applications Automotive
Ripple Current @ Low Frequency 77.19 mA @ 120 Hz
Ripple Current @ High Frequency 83 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360227-EMVH500ARA220MF80G
Ultra Librarian 3D Model Ultra Librarian EMVH500ARA220MF80G CAD Model

Description

The 1360227-EMVH500ARA220MF80G is an aluminum electrolytic capacitor from United Chemi-Con.

  • Series: Alchip™-MVH
  • Capacitance: 22 μF
  • Voltage Rating: 50 V
  • Application: Automotive
  • Operating Temperature: -40°C to 125°C
  • Lifetime: 1000 hours @ 125°C
  • Ripple Current (Low Frequency): 77.19 mA @ 120 Hz
  • Ripple Current (High Frequency): 83 mA @ 100 kHz
  • Package Type: Radial, Can - SMD
  • Mounting: Surface-Mounted
  • Size: 0.248" diameter (6.30mm)
  • Maximum Seated Height: 0.303" (7.70mm)
  • REACH: Unaffected
  • ECCN: EAR99
